General purpose pulse transformer for 10/100 BASE-TX Ethernet applications. Features a 1CT:1CT turns ratio for both primary and secondary windings. Designed with a gull wing lead style for surface mount assembly. RoHS compliant, ensuring adherence to environmental standards.
Quick Jump:
Technical Specifications
Pulse H0068ANL technical specifications.
General
| Lead/Base Style | Gull Wing |
| Package Quantity | 40 |
| RoHS Compliant | Yes |
| Turns Ratio | 1:1 |
Compliance
| RoHS | Compliant |
Datasheet
Pulse H0068ANL Datasheet
Download the complete datasheet for Pulse H0068ANL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

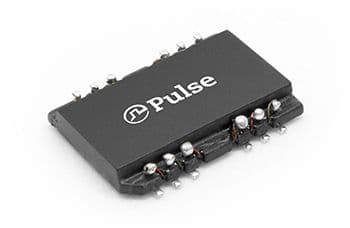

Product Images
