1:1 Pulse Transformer for general applications, featuring 1500Vrms isolation. Surface mount design with 6 terminals. Primary and secondary DC resistance are both 0.6 Ohms. RoHS compliant and suitable for automotive environments.
MountingSurface Mount
Quick Jump:
Technical Specifications
Pulse PA2001NLT technical specifications.
General
| Mount | Surface Mount |
| Package Quantity | 1 |
| RoHS Compliant | Yes |
| Series | PA200xNL |
| Turns Ratio | 1:1 |
Compliance
| RoHS | Compliant |
Datasheet
Pulse PA2001NLT Datasheet
Download the complete datasheet for Pulse PA2001NLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

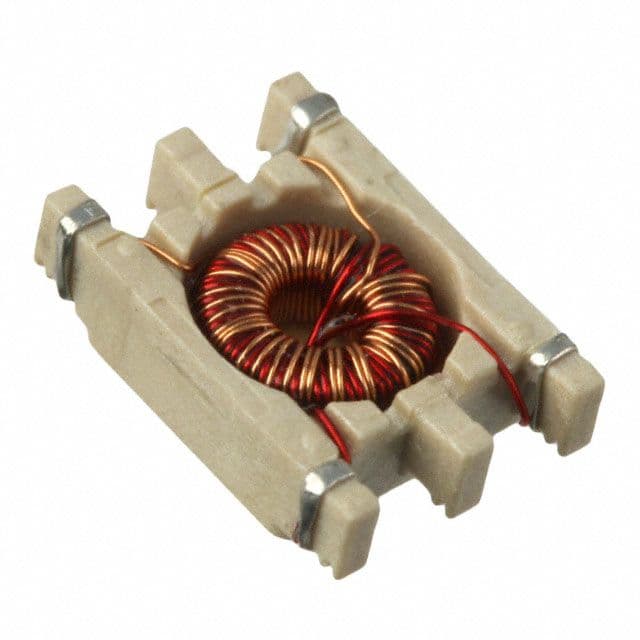

Product Images
