Surface mount switching transformer for SMPS applications, featuring a 41µH inductance and operating at up to 200kHz. This component offers primary DC resistance of 0.062Ω/0.11Ω and secondary DC resistance of 0.019Ω, supporting a maximum DC current of 1.5A and a power rating of 70W. Designed for automotive environments, it operates between -40°C and 130°C with a 14mm height, 17.65mm length, and 14.5mm width, utilizing 10 gull wing terminals.
Frequency200kHz
MountingSurface Mount
Inductance41uH
Quick Jump:
Technical Specifications
Pulse PA3855.003NLT technical specifications.
General
Frequency
200kHz
Height
14mm
Height - Seated (Max)
14mm
Inductance
41uH
Length
17.65mm
Max DC Current
1.5A
Max Operating Temperature
130°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Cut Tape
RoHS Compliant
Yes
Series
EP13Plus
Termination
SMD/SMT
Width
14.5mm
Compliance
RoHS
Compliant
Datasheet
Pulse PA3855.003NLT Datasheet
Download the complete datasheet for Pulse PA3855.003NLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

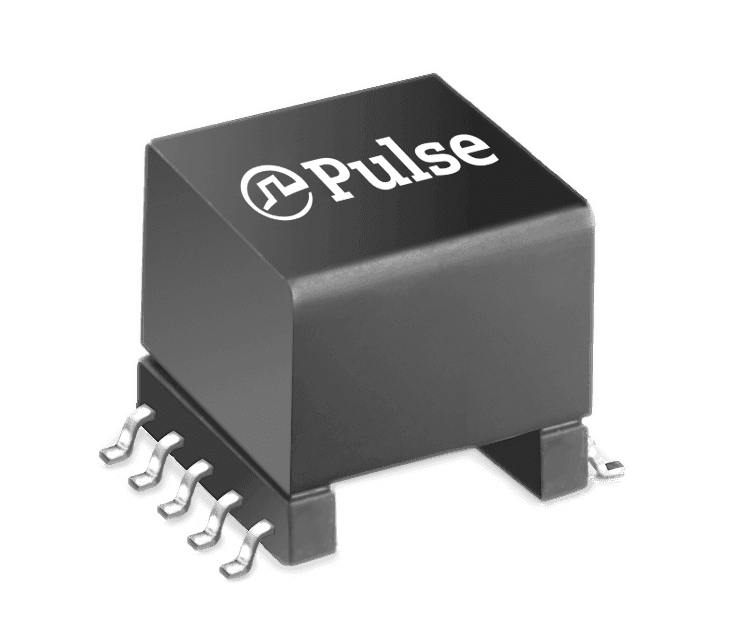

Product Images
