Surface mount switching transformer designed for SMPS applications, featuring a 21µH inductance and operating at frequencies up to 200kHz. This component offers primary DC resistance of 0.0294Ω and secondary DC resistance of 0.126Ω, supporting a maximum DC current of 2.2A and a power rating of 70W. With a 10-terminal gull wing SMD termination, it is suitable for automotive environments, operating across a temperature range of -40°C to 130°C. The transformer measures 17.65mm in length, 14.5mm in width, and 14mm in height, with lead-free and RoHS compliant construction.
Frequency200kHz
MountingSurface Mount
Inductance21uH
Quick Jump:
Technical Specifications
Pulse PA3855.005NLT technical specifications.
General
Frequency
200kHz
Height
14mm
Height - Seated (Max)
14mm
Inductance
21uH
Lead Free
Lead Free
Length
17.65mm
Max DC Current
2.2A
Max Operating Temperature
130°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Cut Tape
RoHS Compliant
Yes
Series
EP13Plus
Termination
SMD/SMT
Width
14.5mm
Compliance
RoHS
Compliant
Datasheet
Pulse PA3855.005NLT Datasheet
Download the complete datasheet for Pulse PA3855.005NLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

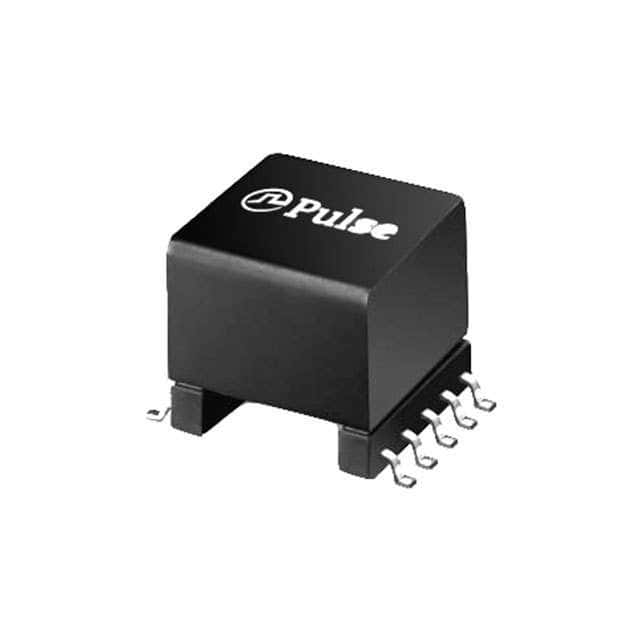

Product Images
