Surface mount fixed inductor with 330nH inductance and 5% tolerance. Features a ceramic core, 300mA current rating, and 1.28 Ohm DC resistance. Operates within a -40°C to 125°C temperature range, with a Q factor of 40 at 100MHz test frequency. Packaged in an 0805 (2012 metric) case, this RoHS compliant component is supplied on tape and reel.
Package0805
Current Rating300mA
MountingSurface Mount
Inductance330nH
Quick Jump:
Technical Specifications
Pulse PE-0805CM331JTT technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Core Material | Ceramic |
| Current Rating | 300mA |
| DC Current | 300mA |
| DC Resistance (DCR) | 1.28R |
| Depth | 1.68mm |
| Height | 0.76mm |
| Height - Seated (Max) | 0.062inch |
| Inductance | 330nH |
| Lead Free | Lead Free |
| Length | 2.29mm |
| Max DC Current | 300mA |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 40 |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 775MHz |
| Series | 0805CM |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 5% |
| Weight | 0.000423oz |
| Width | 0.066inch |
Compliance
| RoHS | Compliant |
Datasheet
Pulse PE-0805CM331JTT Datasheet
Download the complete datasheet for Pulse PE-0805CM331JTT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

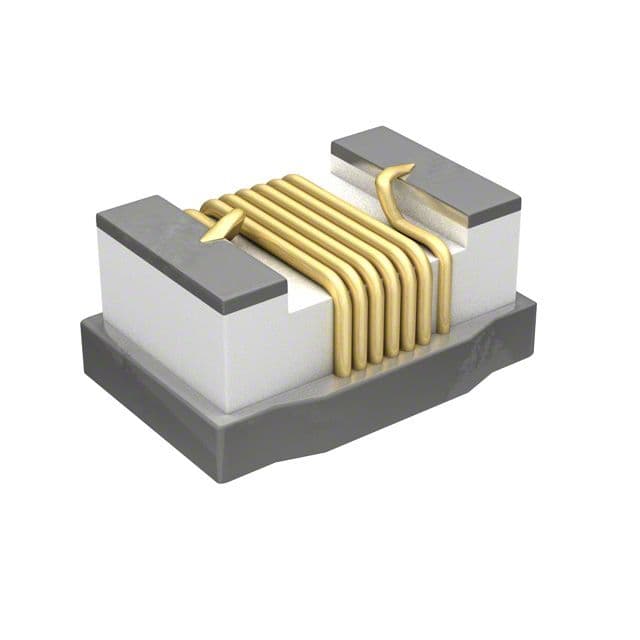

Product Images
