Surface mount power toroid inductor with 25µH inductance and 20% tolerance. Features a 3A current rating, 40mΩ DC resistance, and a maximum operating temperature of 130°C. Designed for surface mount applications with a nonstandard package, offering a compact form factor with dimensions of 17.78mm length, 17.02mm depth, and 16.51mm height. Unshielded and available in bulk packaging.
PackageNonstandard
Current Rating3A
MountingSurface Mount
Inductance25uH
Quick Jump:
Technical Specifications
Pulse PE-54041S technical specifications.
General
Package/Case
Nonstandard
Current Rating
3A
DC Current
3A
DC Resistance (DCR)
40mR
Depth
17.02mm
Height
16.51mm
Height - Seated (Max)
0.39inch
Inductance
25uH
Lead Free
Contains Lead
Length
17.78mm
Max DC Current
3A
Max Operating Temperature
130°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
30
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
No
Series
SIMPLE SWITCHER®
Shielding
Unshielded
Termination
SMD/SMT
Tolerance
20%
Width
0.67inch
Compliance
RoHS
Not CompliantNo
Datasheet
Pulse PE-54041S Datasheet
Download the complete datasheet for Pulse PE-54041S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

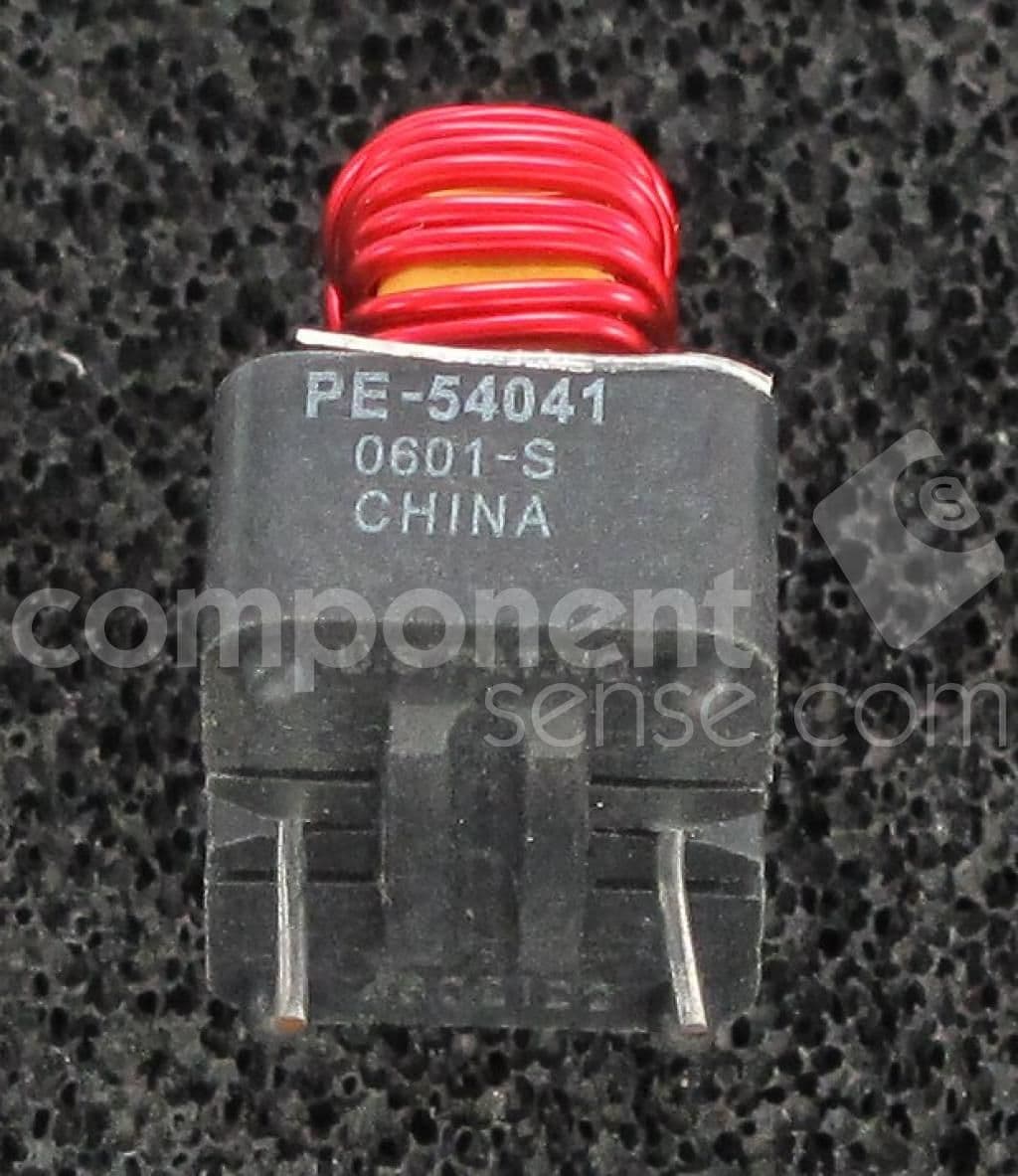

Product Images
