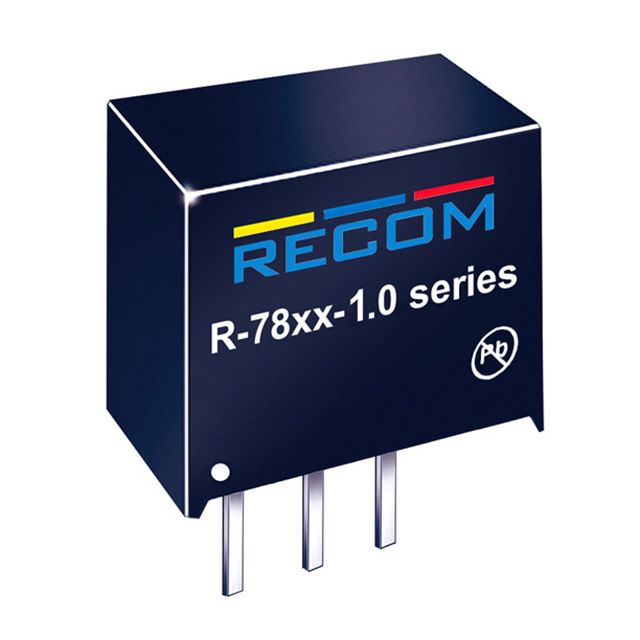

3.3V DC-DC Converter, 1A output current, 3.3W max output power. Features include over-temperature protection (OTP) and short-circuit protection (SCP). Operates with input voltages from 4.75V to 18V DC, with a nominal input of 12V. Non-isolated, SIP package, through-hole mounting. Efficiency up to 90%, operating temperature range of -40°C to 85°C.
PackageSIP
MountingThrough Hole, PCB
Power3.3W
Quick Jump:
Technical Specifications
Recom R-783.3-1.0 technical specifications.
General
Package/Case
SIP
Current - Output 1
1A
Depth
11.5mm
Efficiency
90%
Features
OTP, SCP
Height
10.2mm
Isolation
Non-Isolated
Isolation Voltage
4kV
Lead Free
Lead Free
Length
11.5mm
Max Input Voltage (DC)
18V
Min Input Voltage (DC)
4.75V
Max Input Voltage
18V
Min Input Voltage
4.75V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Power
3.3W
Max Output Voltage
3.3V
Max Power Dissipation
3.3W
Mount
Through Hole, PCB
Nominal Input Voltage
12V
Nominal Output Voltage
3.3V
Number of Outputs
1
Output Current
1A
Output Power
3.3W
Output Voltage
3.3V
Package Quantity
42
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
INNOLINE R-78-1.0
Voltage - Output 1
3.3V
Weight
1.9g
Width
7.55mm
Compliance
RoHS
Compliant
Datasheet
Recom R-783.3-1.0 Datasheet
Download the complete datasheet for Recom R-783.3-1.0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
