Technical Specifications
Recom R-78AA6.5-0.5SMD-R technical specifications.
General
Package/Case
SMD/SMT
Efficiency
95%
Features
OTP, SCP
Height
8.8mm
Isolation Voltage
4kV
Lead Free
Lead Free
Length
15.3mm
Max Input Voltage
32V
Min Input Voltage
8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Voltage
11V
Max Power Dissipation
3W
Mount
Surface Mount
Nominal Input Voltage
24V
Number of Outputs
1
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
INNOLINE R-78AA-0.5
Voltage - Output 1
6.5V
Weight
2.7g
Width
9.6mm
Compliance
RoHS
Compliant
Datasheet
Recom R-78AA6.5-0.5SMD-R Datasheet
Download the complete datasheet for Recom R-78AA6.5-0.5SMD-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

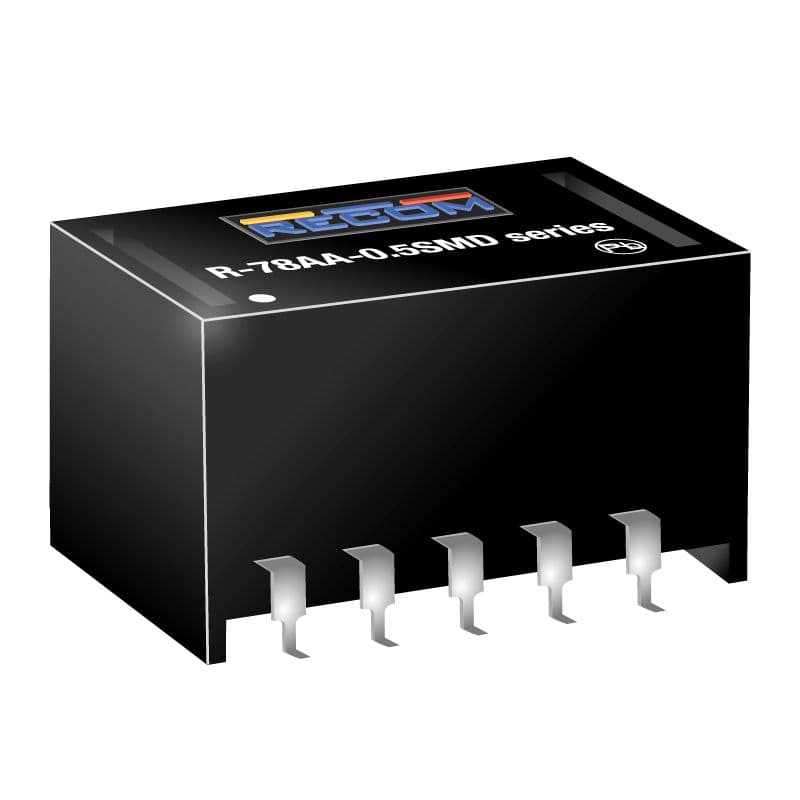

Product Images
