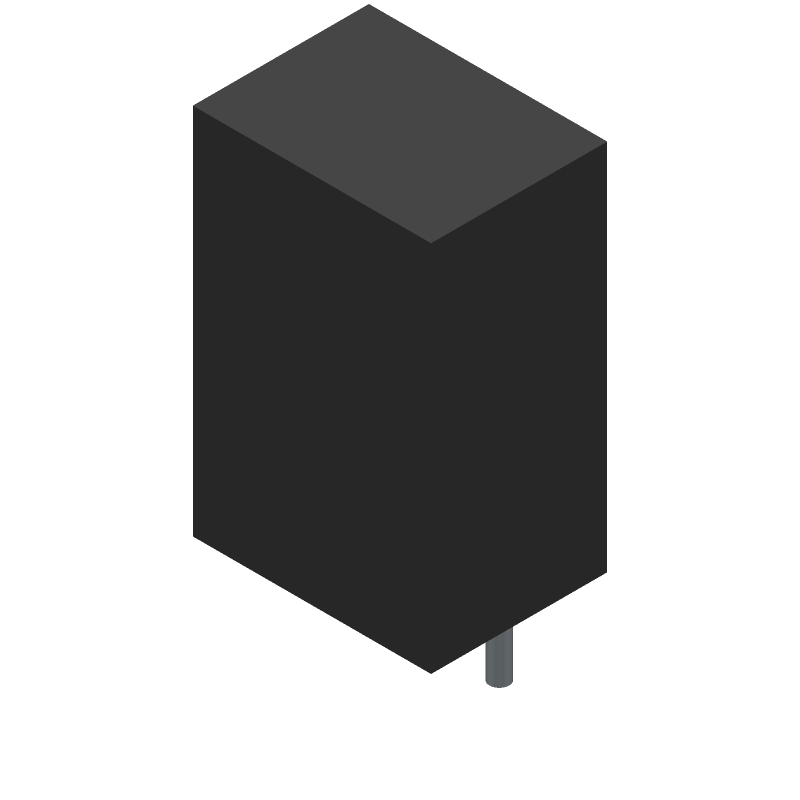

Board mount DC-DC converter module providing a single regulated output. Features a 12W power rating and operates within a -40°C to 71°C temperature range. Input voltage spans from 16V to 32V, with a maximum load regulation of 0.4%. This hybrid, plastic SIP-3 package has 3 terminals and a length of 11.5mm with a width of 8.5mm.
Quick Jump:
Technical Specifications
Recom R-78B12-1.0 technical specifications.
General
Max Operating Temperature
71
Number of Terminals
3
Min Operating Temperature
-40
Terminal Position
SINGLE
JEDEC Package Code
R-PSMA-T3
Width
8.5
Length
11.5
Pin Count
3
Number of Functions
1
Temperature Grade
OTHER
Number of Outputs
1
Input Voltage-Max
32
Input Voltage-Min
16
Load Regulation-Max
0.4
Compliance
RoHS
Yes
Eccn Code
EAR99
Lead Free
Yes
REACH
Compliant
Military Spec
False
Datasheet
Recom R-78B12-1.0 Datasheet
Download the complete datasheet for Recom R-78B12-1.0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
