12W DC-DC Converter with 12V nominal output voltage and 1A output current. Features 96% efficiency, 2% accuracy, and a non-isolated SIP package for through-hole PCB mounting. Operates within a 16V to 32V DC input range, with built-in over-temperature protection (OTP) and short-circuit protection (SCP). This RoHS compliant component offers a 3kV isolation voltage and a wide operating temperature range of -40°C to 85°C.
PackageSIP
MountingThrough Hole, PCB
Power12W
Quick Jump:
Technical Specifications
Recom R-78B12-1.0L technical specifications.
General
Accuracy
2%
Package/Case
SIP
Current - Output 1
1A
Depth
11.5mm
Efficiency
96%
Features
OTP, SCP
Height
17.5mm
Isolation
Non-Isolated
Isolation Voltage
3kV
Lead Free
Lead Free
Length
11.5mm
Max Input Voltage (DC)
32V
Min Input Voltage (DC)
16V
Max Input Voltage
32V
Min Input Voltage
16V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Power
12W
Max Output Voltage
12V
Max Power Dissipation
12W
Mount
Through Hole, PCB
Nominal Input Voltage
24V
Nominal Output Voltage
12V
Number of Outputs
1
Output Current
1A
Output Power
12W
Output Voltage
12V
Package Quantity
42
Packaging
Rail/Tube
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
INNOLINE R-78B-1.0
Voltage - Output 1
12V
Weight
4g
Width
8.5mm
Compliance
RoHS
Compliant
Datasheet
Recom R-78B12-1.0L Datasheet
Download the complete datasheet for Recom R-78B12-1.0L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

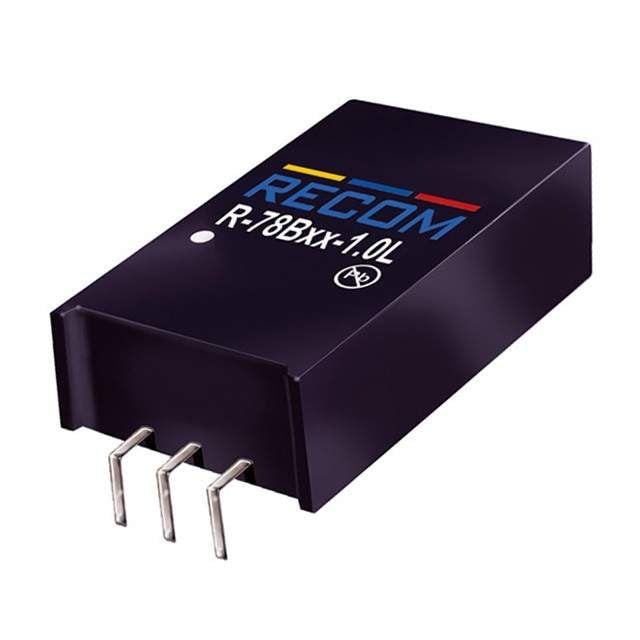

Product Images
