1.5A DC/DC converter with a 5V nominal output voltage, featuring a 6.5V to 18V input range and up to 7.5W output power. This non-isolated regulator offers high efficiency up to 94% and includes over-temperature protection (OTP) and short-circuit protection (SCP). Packaged in a SIP3 through-hole mount, it operates from -40°C to 85°C and is RoHS compliant.
PackageSIP
MountingThrough Hole, PCB
Power7.5W
Quick Jump:
Technical Specifications
Recom R-78B5.0-1.5 technical specifications.
General
Package/Case
SIP
Current - Output 1
1.5A
Depth
11.5mm
Efficiency
94%
Features
OTP, SCP
Height
17.5mm
Isolation
Non-Isolated
Isolation Voltage
2kV
Lead Free
Lead Free
Length
11.5mm
Max Input Voltage (DC)
18V
Min Input Voltage (DC)
6.5V
Max Input Voltage
18V
Min Input Voltage
6.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Power
7.5W
Max Output Voltage
5V
Max Power Dissipation
7.5W
Mount
Through Hole, PCB
Nominal Input Voltage
12V
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
1.5A
Output Power
7.5W
Output Voltage
5V
Package Quantity
42
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
INNOLINE R-78B-1.5
Voltage - Output 1
5V
Weight
4g
Width
8.5mm
Compliance
RoHS
Compliant
Datasheet
Recom R-78B5.0-1.5 Datasheet
Download the complete datasheet for Recom R-78B5.0-1.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

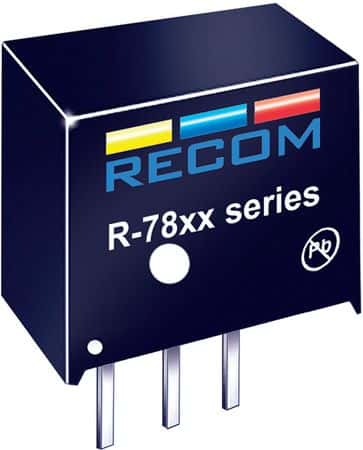

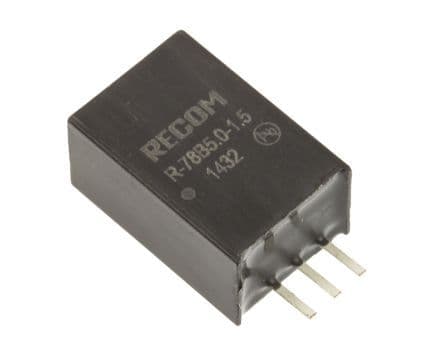

Product Images
