Single output switching regulator, 6.5W maximum output power, delivering 6.5V at 1A. Features include over-temperature protection (OTP) and short-circuit protection (SCP), with a high efficiency of 94%. Operates with a non-isolated design, accepting input voltages from 9V to 32V DC. Packaged in a SIP case for through-hole PCB mounting, this component offers 2% output voltage accuracy and an isolation voltage of 8kV.
PackageSIP
MountingThrough Hole, PCB
Power6.5W
Quick Jump:
Technical Specifications
Recom R-78B6.5-1.0 technical specifications.
General
Accuracy
2%
Package/Case
SIP
Current - Output 1
1A
Depth
11.5mm
Efficiency
94%
Features
OTP, SCP
Height
17.5mm
Isolation
Non-Isolated
Isolation Voltage
8kV
Lead Free
Lead Free
Length
11.5mm
Max Input Voltage (DC)
32V
Min Input Voltage (DC)
9V
Max Input Voltage
32V
Min Input Voltage
9V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Power
6.5W
Max Output Voltage
6.5V
Max Power Dissipation
6.5W
Mount
Through Hole, PCB
Nominal Input Voltage
24V
Nominal Output Voltage
6.5V
Number of Outputs
1
Output Current
1A
Output Power
6.5W
Output Voltage
6.5V
Package Quantity
42
Packaging
Rail/Tube
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
INNOLINE R-78B-1.0
Voltage - Output 1
6.5V
Weight
4g
Width
8.5mm
Compliance
RoHS
Compliant
Datasheet
Recom R-78B6.5-1.0 Datasheet
Download the complete datasheet for Recom R-78B6.5-1.0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

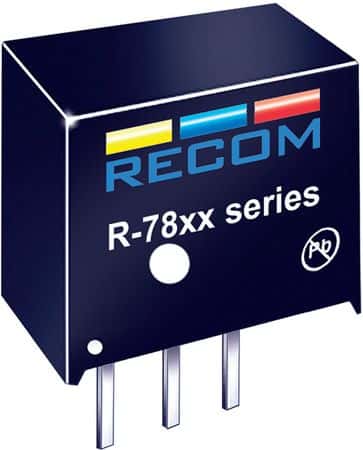

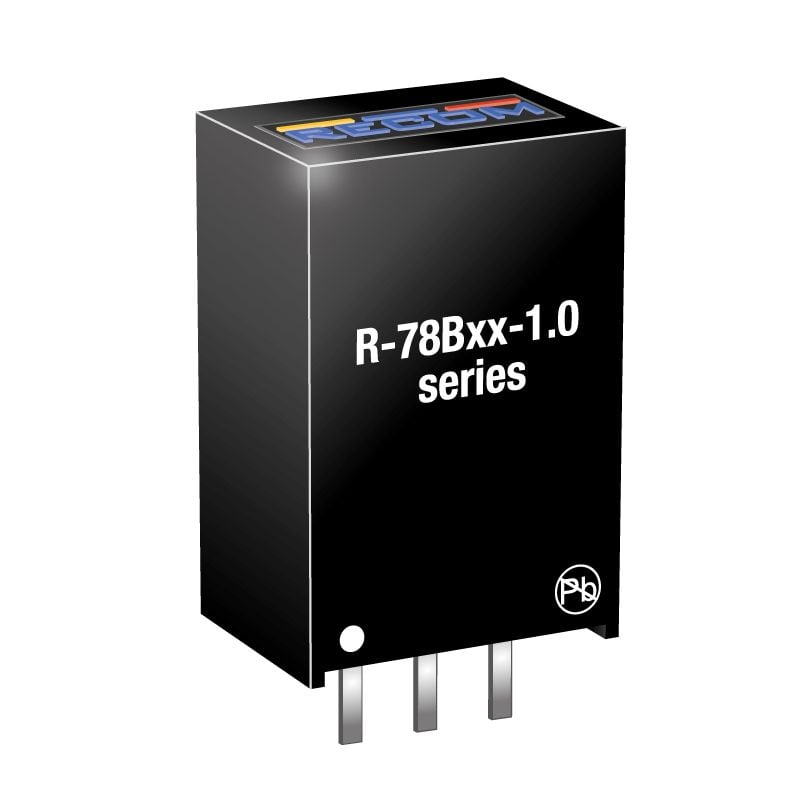

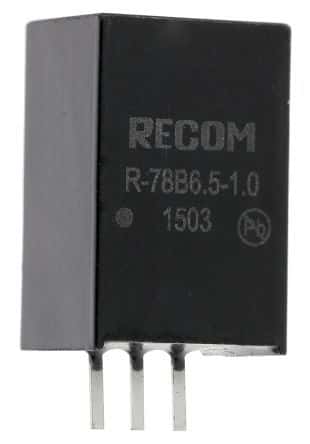

Product Images
