Board mount DC-DC converter delivering a stable 15V output at 1A, with a maximum output power of 15W. Features include over-temperature protection (OTP) and short-circuit protection (SCP), operating efficiently up to 96%. Input voltage range spans from 18V to 42V DC, with a compact 11.6mm x 8.5mm x 10.4mm footprint suitable for through-hole PCB mounting. This RoHS compliant component operates across a wide temperature range of -40°C to 85°C.
MountingThrough Hole, PCB
Power15W
Quick Jump:
Technical Specifications
Recom R-78C15-1.0 technical specifications.
General
Current - Output 1
1A
Depth
11.6mm
Efficiency
96%
Features
OTP, SCP
Height
10.4mm
Lead Free
Lead Free
Length
11.6mm
Max Input Voltage (DC)
42V
Min Input Voltage (DC)
18V
Max Input Voltage
42V
Min Input Voltage
18V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Power
15W
Max Output Voltage
15V
Max Power Dissipation
15W
Mount
Through Hole, PCB
Nominal Output Voltage
15V
Number of Outputs
1
Output Current
1A
Output Power
15W
Output Voltage
15V
Package Quantity
42
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
INNOLINE R-78C-1.0
Voltage - Output 1
15V
Weight
2g
Width
8.5mm
Compliance
RoHS
Compliant
Datasheet
Recom R-78C15-1.0 Datasheet
Download the complete datasheet for Recom R-78C15-1.0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

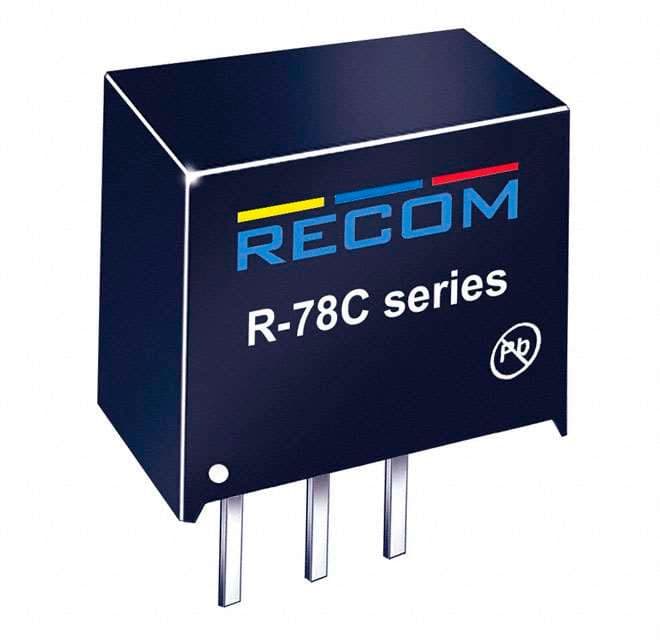

Product Images
