5V fixed output DC-DC converter with 500mA output current and 2.5W maximum output power. Features include short-circuit protection (SCP) and 92% efficiency. Operates with a 7V to 28V DC input voltage range. Non-isolated, through-hole mounted SIP package with lead-free and RoHS compliance.
PackageSIP
MountingThrough Hole, PCB
Power2.5W
Quick Jump:
Technical Specifications
Recom R-78E5.0-0.5 technical specifications.
General
Package/Case
SIP
Current - Output 1
500mA
Depth
11.6mm
Efficiency
92%
Features
SCP
Height
10.4mm
Isolation
Non-Isolated
Lead Free
Lead Free
Length
11.6mm
Max Input Voltage (DC)
28V
Min Input Voltage (DC)
7V
Max Input Voltage
28V
Min Input Voltage
7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Power
2.5W
Max Output Voltage
5V
Max Power Dissipation
3W
Mount
Through Hole, PCB
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
500mA
Output Power
2.5W
Output Type
Fixed
Output Voltage
5V
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
INNOLINE R-78E
Voltage - Output 1
5V
Weight
2g
Width
8.5mm
Compliance
RoHS
Compliant
Datasheet
Recom R-78E5.0-0.5 Datasheet
Download the complete datasheet for Recom R-78E5.0-0.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

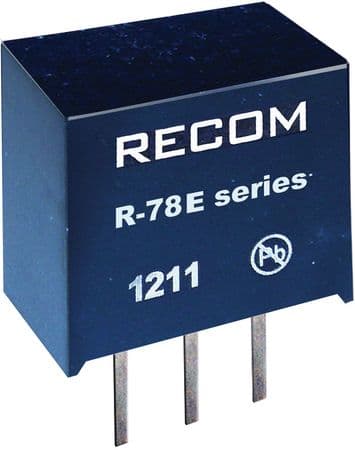

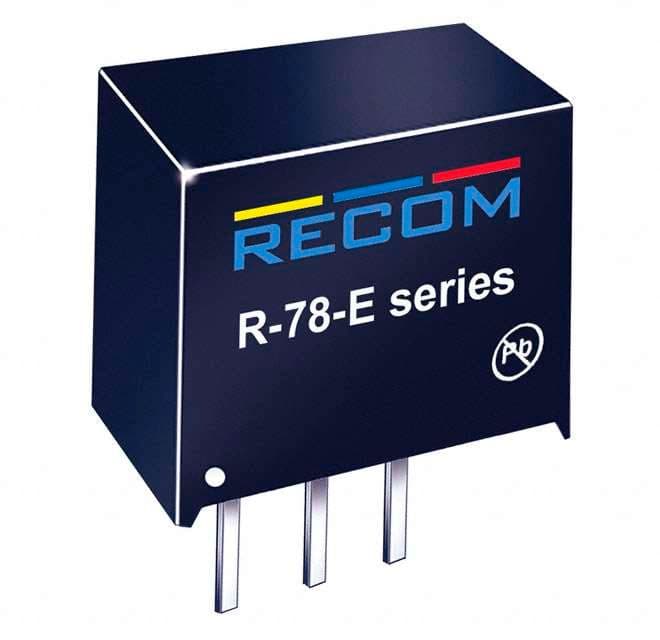

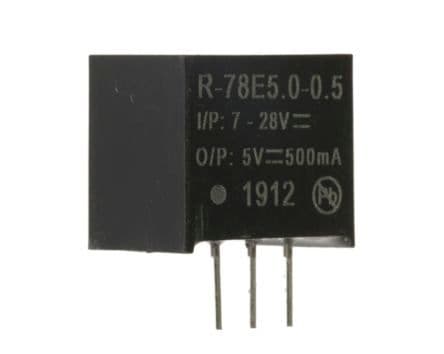

Product Images
