0.5A DC/DC converter with a 12V output voltage and 500mA output current. This non-isolated regulator operates with an input voltage range of 17-72V DC and features a 94% efficiency. Integrated protection includes OTP and SCP. The SIP package is designed for through-hole PCB mounting, with dimensions of 11.5mm (L) x 8.5mm (W) x 17.5mm (H).
PackageSIP
MountingThrough Hole, PCB
Power6W
Quick Jump:
Technical Specifications
Recom R-78HB12-0.5L technical specifications.
General
Package/Case
SIP
Current - Output 1
500mA
Depth
11.5mm
Efficiency
94%
Features
OTP, SCP
Height
17.5mm
Isolation
Non-Isolated
Isolation Voltage
3kV
Lead Free
Lead Free
Length
11.5mm
Max Input Voltage (DC)
72V
Min Input Voltage (DC)
17V
Max Input Voltage
72V
Min Input Voltage
17V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Power
6W
Max Output Voltage
12V
Max Power Dissipation
6W
Mount
Through Hole, PCB
Nominal Input Voltage
48V
Nominal Output Voltage
12V
Number of Outputs
1
Output
12V
Output Current
500mA
Output Power
6W
Output Voltage
12V
Package Quantity
42
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
INNOLINE R-78HB
Voltage - Output 1
12V
Weight
4g
Width
8.5mm
Compliance
RoHS
Compliant
Datasheet
Recom R-78HB12-0.5L Datasheet
Download the complete datasheet for Recom R-78HB12-0.5L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

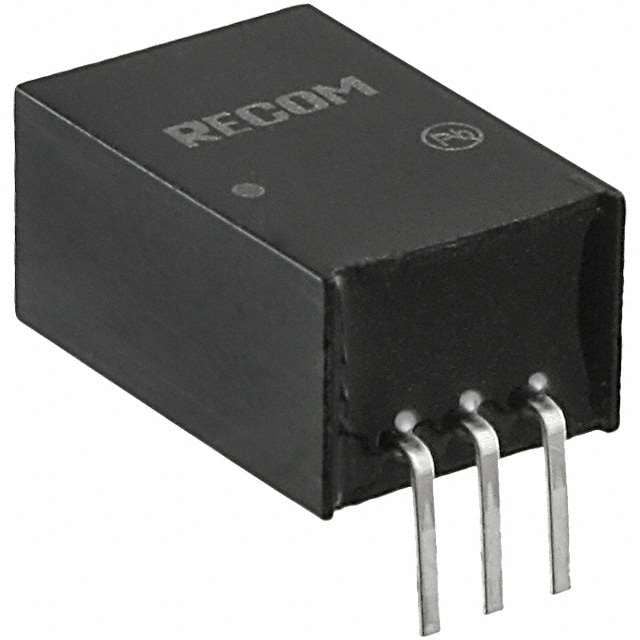

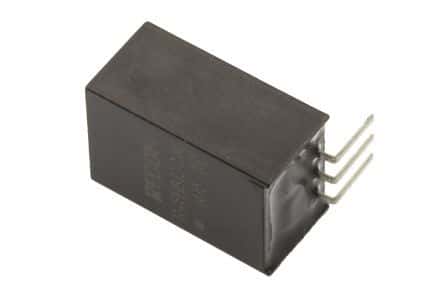

Product Images
