2W DC-DC Converter, 5V Output Voltage, 400mA Max Output Current. Features Short Circuit Protection (SCP) and 3kV Isolation Voltage. Operates from a 4.5V to 5.5V input range with a nominal input of 5V. Surface mountable in an SMD/SMT package, this RoHS compliant converter offers 85% efficiency and a wide operating temperature range of -40°C to 100°C.
PackageSMD/SMT
MountingSurface Mount
Power2W
Quick Jump:
Technical Specifications
Recom R2S-0505/H technical specifications.
General
Package/Case
SMD/SMT
Efficiency
85%
Features
SCP
Height
8.7mm
Isolation Voltage
3kV
Lead Free
Lead Free
Length
12.75mm
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Current
400mA
Max Output Voltage
5V
Max Power Dissipation
2W
Mount
Surface Mount
Nominal Input Voltage
5V
Number of Outputs
1
Output Power
2W
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
ECONOLINE R2S (2W)
Voltage - Output 1
5V
Weight
1.4g
Width
10.7mm
Compliance
RoHS
Compliant
Datasheet
Recom R2S-0505/H Datasheet
Download the complete datasheet for Recom R2S-0505/H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

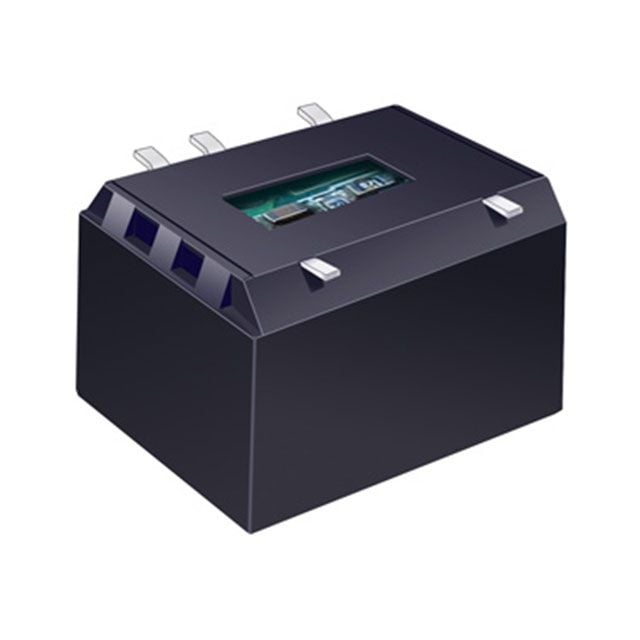

Product Images
