2W DC-DC Converter, SMD/SMT package, featuring 24V output voltage and 83mA maximum output current. Operates with 21.6V to 26.4V input voltage, nominal 24V, and offers 3kV isolation voltage. Achieves 85% efficiency and includes short-circuit protection (SCP). Suitable for surface mount applications with a wide operating temperature range of -40°C to 100°C.
PackageSMD/SMT
MountingSurface Mount
Power2W
Quick Jump:
Technical Specifications
Recom R2S-2424/H technical specifications.
General
Package/Case
SMD/SMT
Efficiency
85%
Features
SCP
Height
8.7mm
Isolation Voltage
3kV
Lead Free
Lead Free
Length
12.75mm
Max Input Voltage
26.4V
Min Input Voltage
21.6V
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Current
83mA
Max Output Voltage
24V
Max Power Dissipation
2W
Mount
Surface Mount
Nominal Input Voltage
24V
Number of Outputs
1
Output Power
2W
Package Quantity
39
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
ECONOLINE R2S
Voltage - Output 1
24V
Weight
1.4g
Width
10.7mm
Compliance
RoHS
Compliant
Datasheet
Recom R2S-2424/H Datasheet
Download the complete datasheet for Recom R2S-2424/H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

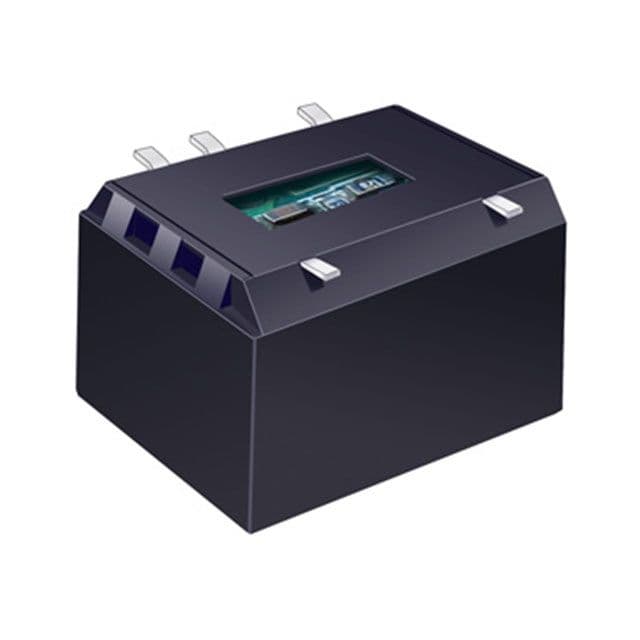

Product Images
