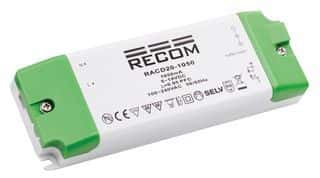

20W LED Driver Module, 1.05A Output, 90-264VAC Input, 17V Output

Recom

RACD20-1050

Name: RACD20-1050 Recom
Brand: Recom
SKU: RACD20-1050

20W LED Driver Module, 1.05A Output, 90-264VAC Input, 17V Output

20W LED driver module delivering 1.05A output current with a maximum output voltage of 19V. Features include over-voltage, over-current, over-temperature, and short-circuit protection. Operates from a 90V to 264V AC input, offering 83% efficiency and 3kV isolation. Chassis and panel mountable with terminal block termination, this RoHS compliant component is rated IP20.

PackageModule

Voltage Rating264V

MountingChassis Mount, Panel, Screw

Power20W

Quick Jump:

Technical Specifications

Recom RACD20-1050 technical specifications.

General

Approvals	CE, cULus, SEMKO
Package/Case	Module
Current - Output 1	1.05A
Depth	50mm
Efficiency	83%
Features	OVP, OCP, OTP, SCP
Height	22mm
Input Current	260mA
Isolation Voltage	3kV
Lead Free	Lead Free
Length	145mm
Max Input Voltage	264V
Min Input Voltage	90V
Max Operating Temperature	50°C
Min Operating Temperature	-20°C
Max Output Current	1.05A
Max Output Power	20W
Max Output Voltage	17V
Max Power Dissipation	20W
Mount	Chassis Mount, Panel, Screw
Number of Channels	1
Number of Outputs	1
Output Current	1.05A
Output Power	20W
Output Voltage	17V
Package Quantity	1
Packaging	Bulk
Ratings	IP20
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	LIGHTLINE RACD20
Termination	Terminal Block
Voltage - Output 1	19V
Voltage Rating	264V
Weight	160g
Width	50mm
