AC/DC LED Driver module with 350mA constant current output, capable of driving up to 34V. Features dual outputs, analog dimming, and 80% efficiency. Integrated protection includes OCP, OTP, and SCP. Operates from 200-264V AC input, with 3kV isolation voltage. Chassis mountable with terminal block termination, rated IP20, and RoHS compliant.
PackageModule
Voltage Rating264V
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Recom RACD20-350D technical specifications.
General
Approvals
UL, CE, EN, SEMKO
Package/Case
Module
Current - Output 1
350mA
Current - Output 2
350mA
Dimming
Analog
Efficiency
80%
Features
OCP, OTP, SCP
Height
0.87inch
Input Current
260mA
Isolation Voltage
3kV
Lead Free
Lead Free
Length
6.1inch
Max Input Voltage
264V
Min Input Voltage
200V
Max Operating Temperature
40°C
Min Operating Temperature
-20°C
Max Output Current
350mA
Max Output Power
20W
Max Output Voltage
34V
Max Power Dissipation
20W
Mount
Chassis Mount, Screw
Number of Outputs
2
Output Current
350mA
Output Voltage
34V
Package Quantity
1
Ratings
IP20
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LIGHTLINE RACD20-D
Termination
Terminal Block
Voltage - Output 1
34V
Voltage - Output 2
34V
Voltage Rating
264V
Weight
0.309lb
Width
1.97inch
Compliance
RoHS
Compliant
Datasheet
Recom RACD20-350D Datasheet
Download the complete datasheet for Recom RACD20-350D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

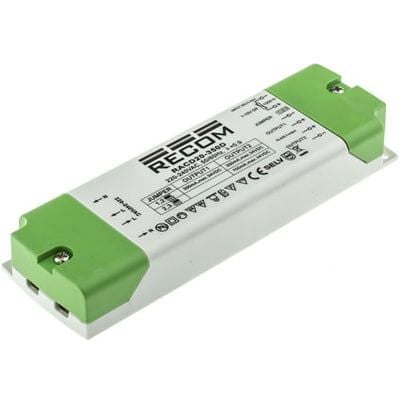

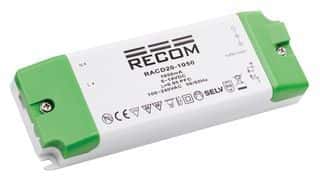

Product Images
