2W DC/DC converter with dual 15V outputs, featuring 86% efficiency and 1kV isolation. This SIP package component operates from a 10.8V to 13.2V input range, delivering up to 66mA per output. Includes short-circuit protection (SCP) and is RoHS compliant. Designed for through-hole mounting, it operates across a -40°C to 85°C temperature range.
PackageSIP
MountingThrough Hole
Power2W
Quick Jump:
Technical Specifications
Recom RD-1215D/P technical specifications.
General
Package/Case
SIP
Current - Output 1
66mA
Current - Output 2
66mA
Efficiency
86%
Features
SCP
Height
10.2mm
Isolation Voltage
1kV
Lead Free
Lead Free
Length
19.65mm
Max Input Voltage
13.2V
Min Input Voltage
10.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
66mA
Max Output Voltage
15V
Max Power Dissipation
2W
Mount
Through Hole
Nominal Input Voltage
12V
Number of Outputs
2
Output Power
2W
Package Quantity
25
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
ECONOLINE RD
Voltage - Output 1
15V
Voltage - Output 2
-15V
Weight
2.8g
Width
7.05mm
Compliance
RoHS
Compliant
Datasheet
Recom RD-1215D/P Datasheet
Download the complete datasheet for Recom RD-1215D/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

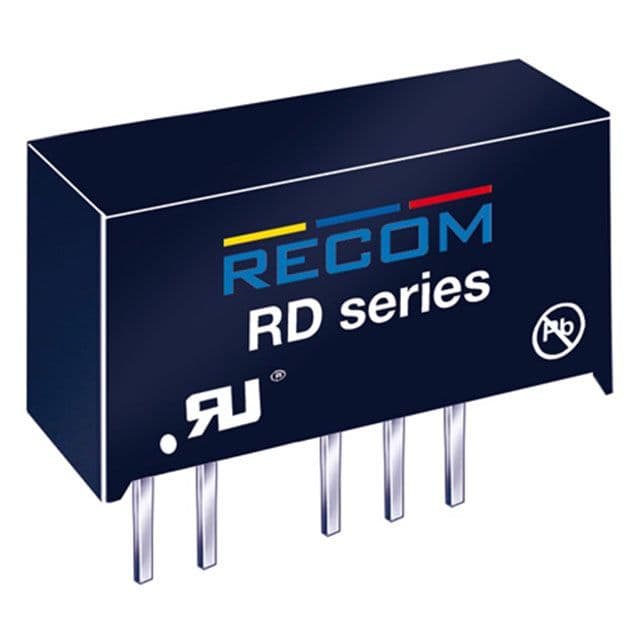

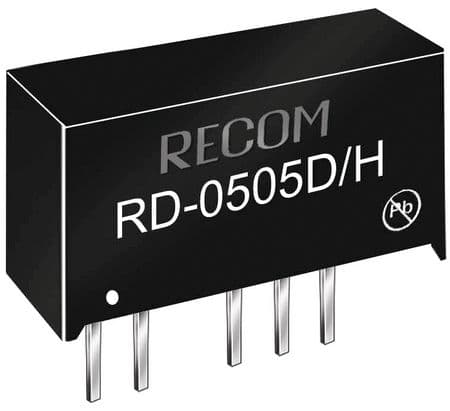

Product Images
