Isolated DC-DC converter, 5W output power, featuring a 5V output voltage and 1A output current. This board mount component operates with an input voltage range of 18V to 36V, a nominal input of 24V, and offers 4kV isolation. With 81% efficiency and a wide operating temperature range from -40°C to 75°C, it includes short-circuit protection (SCP) and is RoHS compliant. The through-hole, DIP package measures 32mm x 20.3mm x 10.2mm.
PackageDIP
MountingThrough Hole
Power5W
Quick Jump:
Technical Specifications
Recom REC5-2405SRW/H4/C technical specifications.
General
Package/Case
DIP
Depth
20.3mm
Efficiency
81%
Features
SCP
Height
10.2mm
Isolation
Isolated
Isolation Voltage
4kV
Lead Free
Lead Free
Length
32mm
Max Input Voltage
36V
Min Input Voltage
18V
Max Operating Temperature
75°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
5V
Max Power Dissipation
5W
Mount
Through Hole
Nominal Input Voltage
24V
Number of Outputs
1
Output Current
1A
Output Power
5W
Output Voltage
5V
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
ECONOLINE REC5
Voltage - Output 1
5V
Weight
13g
Width
20.3mm
Compliance
RoHS
Compliant
Datasheet
Recom REC5-2405SRW/H4/C Datasheet
Download the complete datasheet for Recom REC5-2405SRW/H4/C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

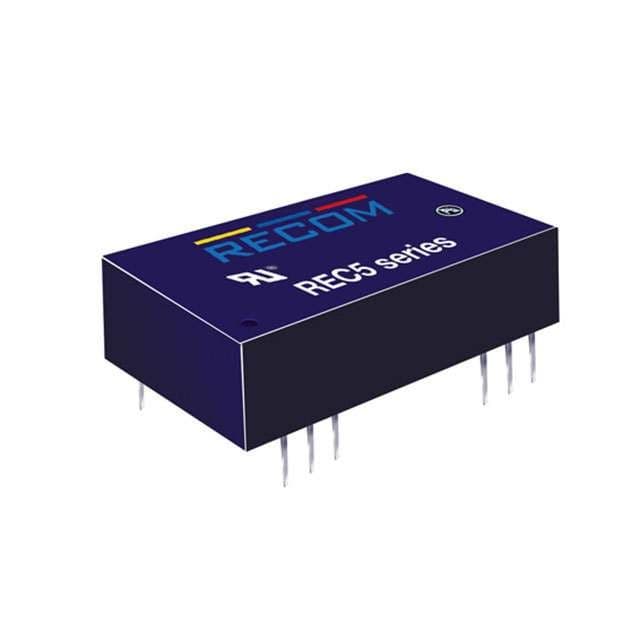

Product Images
