0.25W DC/DC converter with 5V output voltage and 50mA maximum output current. Features 3.3V nominal input voltage, operating from 3V to 3.6V. Offers 72% efficiency and 1kV isolation voltage. SIP package for through-hole mounting, with short-circuit protection (SCP) and lead-free construction.
PackageSIP
MountingThrough Hole
Power250mW
Quick Jump:
Technical Specifications
Recom RM-3.305S/P technical specifications.
General
Package/Case
SIP
Efficiency
72%
Features
SCP
Height
10mm
Isolation Voltage
1kV
Lead Free
Lead Free
Length
11.5mm
Max Input Voltage
3.6V
Min Input Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Max Output Voltage
5V
Max Power Dissipation
250mW
Mount
Through Hole
Nominal Input Voltage
3.3V
Number of Outputs
1
Output Power
250mW
Package Quantity
42
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
ECONOLINE RM (0.25W)
Voltage - Output 1
5V
Weight
1.4g
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Recom RM-3.305S/P Datasheet
Download the complete datasheet for Recom RM-3.305S/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

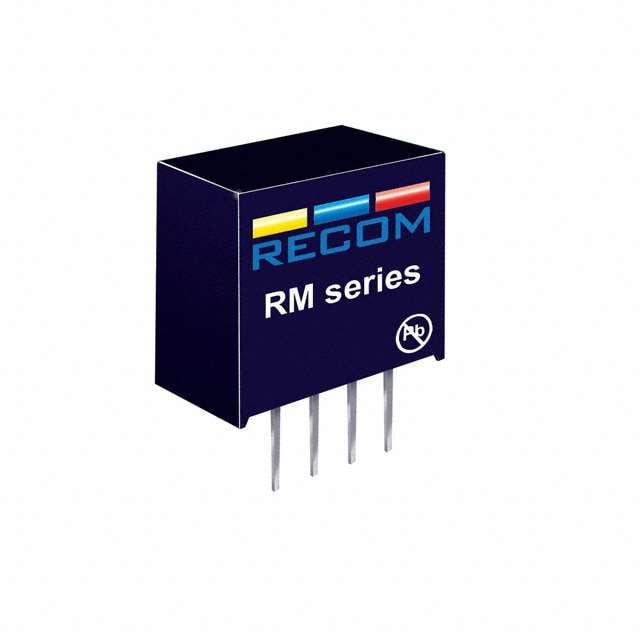

Product Images
