Isolated DC-DC converter, 3.3V nominal output voltage, 250mW maximum output power, and 76mA maximum output current. Features short-circuit protection (SCP) and operates with a nominal input voltage of 3.3V, ranging from 2.97V to 3.63V. This through-hole mounted component offers 1kV isolation voltage and a 70% efficiency, packaged in a SIP with dimensions of 11.5mm (L) x 6mm (W) x 10mm (H).
PackageSIP
MountingThrough Hole, PCB
Power250mW
Quick Jump:
Technical Specifications
Recom RM-3.33.3S technical specifications.
General
Package/Case
SIP
Current - Output 1
76mA
Depth
11.5mm
Efficiency
70%
Features
SCP
Height
10mm
Isolation
Isolated
Isolation Voltage
1kV
Lead Free
Lead Free
Length
11.5mm
Max Input Voltage (DC)
3.63V
Min Input Voltage (DC)
2.97V
Max Input Voltage
3.6V
Min Input Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
76mA
Max Output Power
250mW
Max Output Voltage
3.3V
Max Power Dissipation
250mW
Mount
Through Hole, PCB
Nominal Input Voltage
3.3V
Nominal Output Voltage
3.3V
Number of Outputs
1
Output Current
76mA
Output Power
250mW
Output Voltage
3.3V
Packaging
Rail/Tube
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
RM
Voltage - Output 1
3.3V
Weight
1.4g
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Recom RM-3.33.3S Datasheet
Download the complete datasheet for Recom RM-3.33.3S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

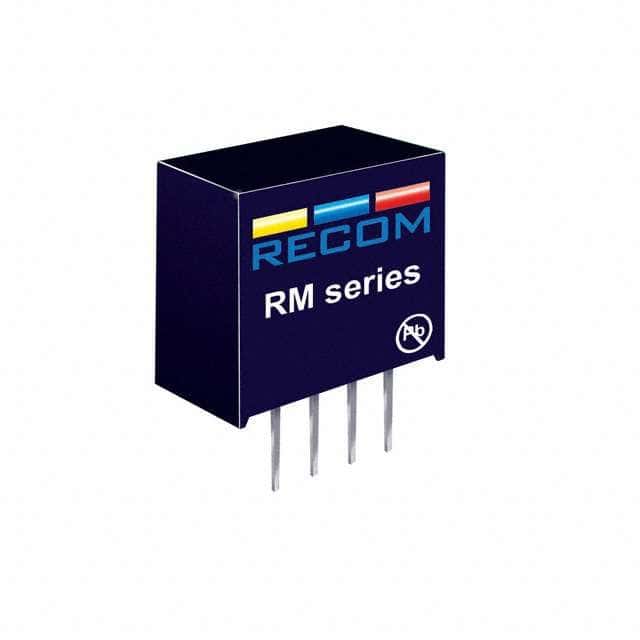

Product Images
