Isolated DC-DC converter with 3.3V nominal output voltage and 1W maximum output power. Features 303mA maximum output current, 1% accuracy, and 75% efficiency. Operates from a 4.5V to 5.5V DC input range, with a nominal input of 5V. Packaged in a SIP for through-hole mounting, offering 1kV isolation voltage and short-circuit protection.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Recom RO-053.3S technical specifications.
General
Accuracy
1%
Package/Case
SIP
Current - Output 1
303mA
Depth
11.5mm
Efficiency
75%
Features
SCP
Height
10mm
Isolation
Isolated
Isolation Voltage
1kV
Lead Free
Lead Free
Length
11.5mm
Max Input Voltage (DC)
5.5V
Min Input Voltage (DC)
4.5V
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
303mA
Max Output Power
1W
Max Output Voltage
3.3V
Max Power Dissipation
1W
Mount
Through Hole
Nominal Input Voltage
5V
Nominal Output Voltage
3.3V
Number of Outputs
1
Output Current
303mA
Output Power
1W
Output Voltage
3.3V
Packaging
Rail/Tube
Pitch
2.54mm
Power
Yes
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
RO
Voltage - Output 1
3.3V
Weight
1.4g
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Recom RO-053.3S Datasheet
Download the complete datasheet for Recom RO-053.3S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

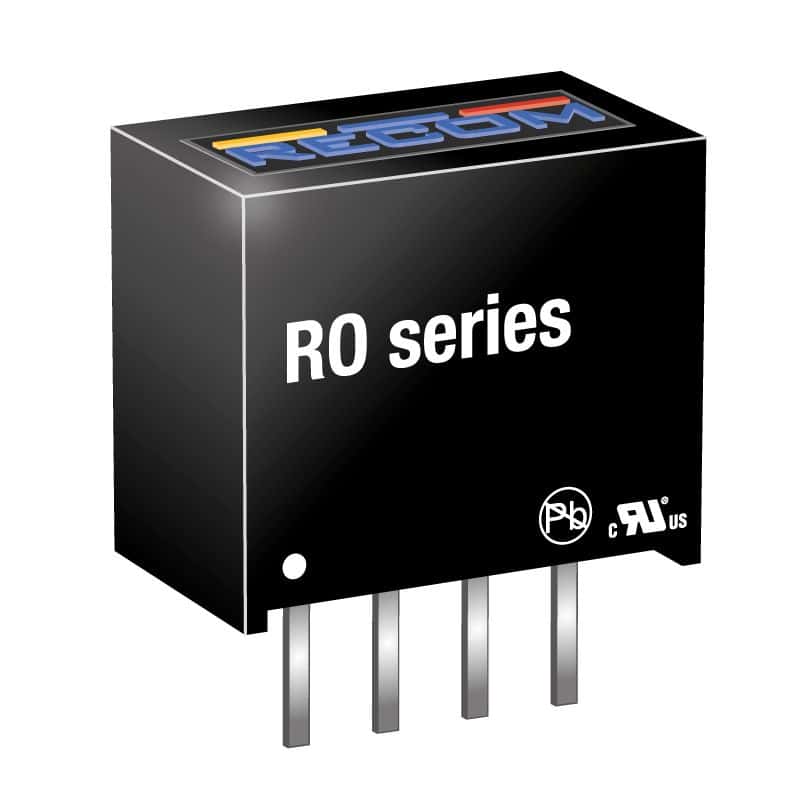

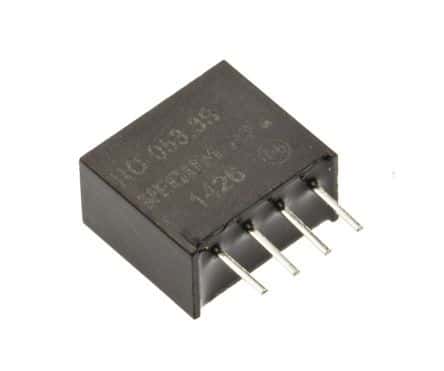

Product Images
