Isolated DC-DC converter, 1W output power, 12V nominal output voltage, and 83mA output current. Features include short-circuit protection (SCP), 1kV isolation voltage, and 84% efficiency. Operates within a -40°C to 85°C temperature range, with a 10.8V to 13.2V input voltage range. Through-hole mounting in a SIP package.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Recom RO-1212S/P technical specifications.
General
Package/Case
SIP
Current - Output 1
83mA
Depth
11.5mm
Efficiency
84%
Features
SCP
Height
10mm
Isolation
Isolated
Isolation Voltage
1kV
Lead Free
Lead Free
Length
11.5mm
Max Input Voltage (DC)
13.2V
Min Input Voltage (DC)
10.8V
Max Input Voltage
13.2V
Min Input Voltage
10.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
83mA
Max Output Power
1W
Max Output Voltage
12V
Max Power Dissipation
1W
Mount
Through Hole
Nominal Input Voltage
12V
Nominal Output Voltage
12V
Number of Outputs
1
Output Current
83mA
Output Power
1W
Output Voltage
12V
Package Quantity
42
Packaging
Rail/Tube
Power
Yes
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ECONOLINE RO
Voltage - Output 1
12V
Weight
1.4g
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Recom RO-1212S/P Datasheet
Download the complete datasheet for Recom RO-1212S/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

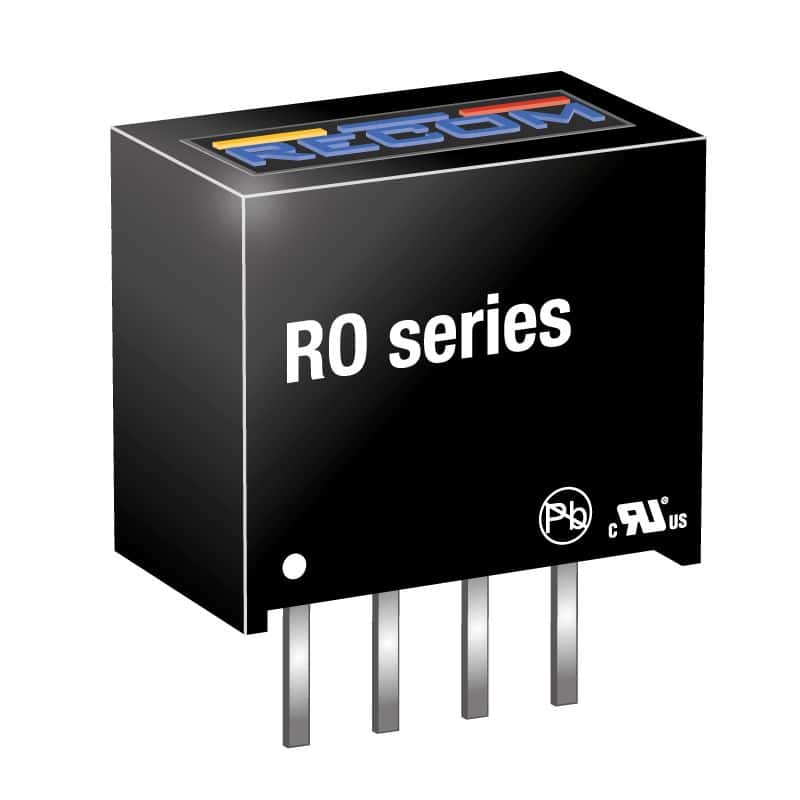

Product Images
