1W DC-DC converter with 15V output voltage and 66mA maximum output current. Features 1kV isolation voltage, 84% efficiency, and short-circuit protection (SCP). Operates within a -40°C to 85°C temperature range, with input voltage from 13.5V to 16.5V. Packaged in a SIP for through-hole mounting, this lead-free and RoHS compliant component offers a compact solution.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Recom RO-1515S technical specifications.
General
| Package/Case | SIP |
| Efficiency | 84% |
| Features | SCP |
| Height | 10mm |
| Isolation Voltage | 1kV |
| Lead Free | Lead Free |
| Length | 11.5mm |
| Max Input Voltage | 16.5V |
| Min Input Voltage | 13.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 66mA |
| Max Output Voltage | 15V |
| Max Power Dissipation | 1W |
| Mount | Through Hole |
| Nominal Input Voltage | 15V |
| Number of Outputs | 1 |
| Output Power | 1W |
| Package Quantity | 42 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | ECONOLINE RO |
| Voltage - Output 1 | 15V |
| Weight | 1.4g |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Recom RO-1515S Datasheet
Download the complete datasheet for Recom RO-1515S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

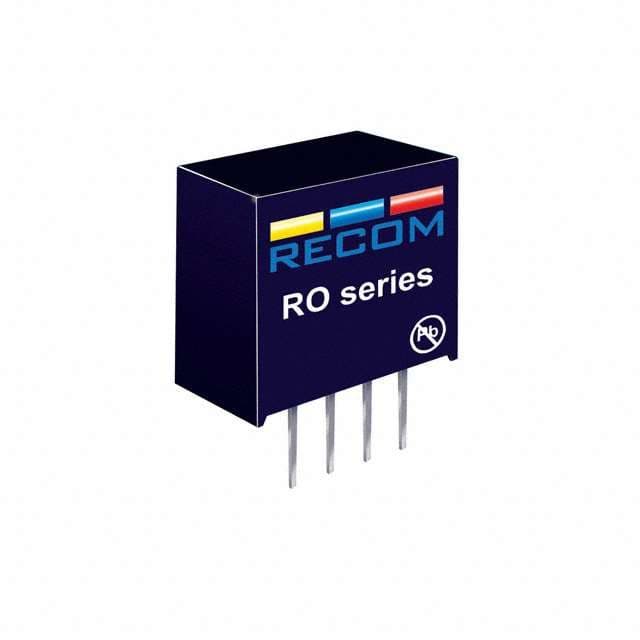

Product Images
