Isolated DC/DC converter, 1W output power, 15V nominal output voltage, 66mA output current. Features Short Circuit Protection (SCP) and 1kV isolation voltage. Operates with a 21.6V to 26.4V DC input voltage range, nominal 24V. Packaged in a SIP for through-hole PCB mounting, with dimensions of 11.5mm (L) x 6mm (W) x 10mm (H). RoHS compliant and lead-free.
PackageSIP
MountingThrough Hole, PCB
Power1W
Quick Jump:
Technical Specifications
Recom RO-2415S technical specifications.
General
Package/Case
SIP
Current - Output 1
66mA
Depth
11.5mm
Efficiency
84%
Features
SCP
Height
10mm
Isolation
Isolated
Isolation Voltage
1kV
Lead Free
Lead Free
Length
11.5mm
Max Input Voltage (DC)
26.4V
Min Input Voltage (DC)
21.6V
Max Input Voltage
26.4V
Min Input Voltage
21.6V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
66mA
Max Output Power
1W
Max Output Voltage
15V
Max Power Dissipation
1W
Mount
Through Hole, PCB
Nominal Input Voltage
24V
Nominal Output Voltage
15V
Number of Outputs
1
Output Current
66mA
Output Power
1W
Output Voltage
15V
Package Quantity
42
Packaging
Rail/Tube
Power
Yes
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
RO
Voltage - Output 1
15V
Weight
1.4g
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Recom RO-2415S Datasheet
Download the complete datasheet for Recom RO-2415S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

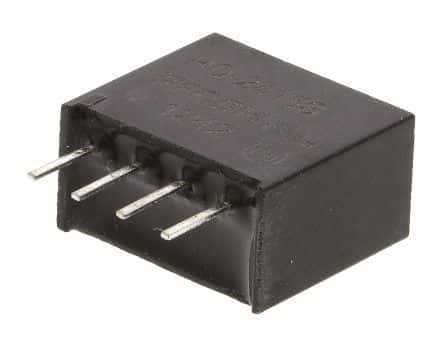

Product Images
