Isolated DC-DC Converter, 1W output power, featuring a 24V nominal output voltage and 42mA maximum output current. This power management IC operates with a 3.3V nominal input voltage, accepting a range from 3V to 3.6V. Achieving 85% efficiency, it offers 1kV isolation voltage and includes short-circuit protection (SCP). The component is housed in a SIP package for through-hole mounting, with dimensions of 11.5mm (L) x 6mm (W) x 10mm (H) and a 2.54mm pitch.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Recom RO-3.324S technical specifications.
General
Accuracy
1%
Package/Case
SIP
Current - Output 1
42mA
Depth
11.5mm
Efficiency
85%
Features
SCP
Height
10mm
Isolation
Isolated
Isolation Voltage
1kV
Lead Free
Lead Free
Length
11.5mm
Max Input Voltage (DC)
3.63V
Min Input Voltage (DC)
2.97V
Max Input Voltage
3.6V
Min Input Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
42mA
Max Output Power
1W
Max Output Voltage
24V
Max Power Dissipation
1W
Mount
Through Hole
Nominal Input Voltage
3.3V
Nominal Output Voltage
24V
Number of Outputs
1
Output Current
42mA
Output Power
1W
Output Voltage
24V
Packaging
Rail/Tube
Pitch
2.54mm
Power
Yes
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
RO
Voltage - Output 1
24V
Weight
1.4g
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Recom RO-3.324S Datasheet
Download the complete datasheet for Recom RO-3.324S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

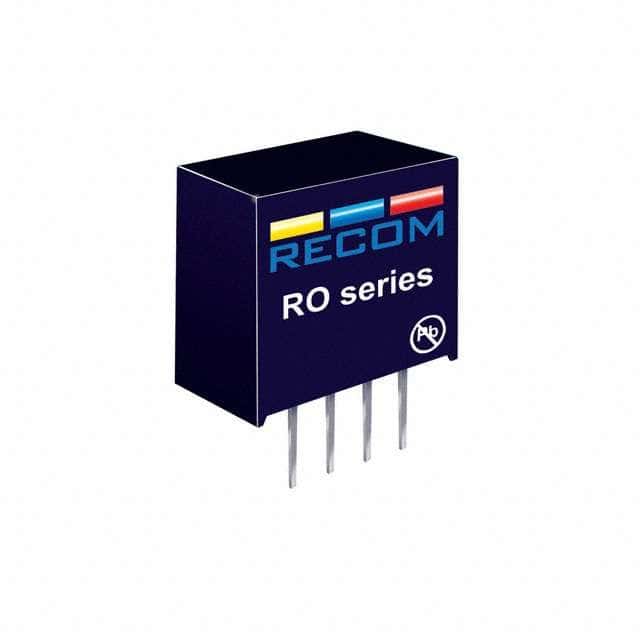

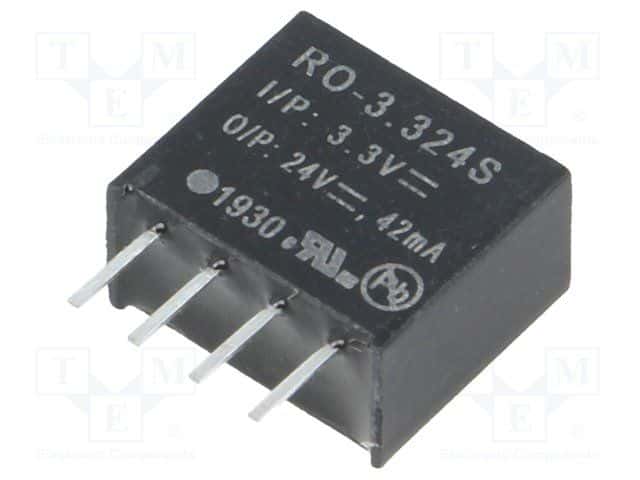

Product Images
