Isolated DC-DC converter, 1W output power, featuring dual +/-12V outputs at 42mA each. Operates with a 4.5V to 5.5V DC input, offering 82% efficiency. Designed for through-hole PCB mounting in a SIP package, it provides 5.2kV isolation and includes short-circuit protection. Operating temperature range is -40°C to 85°C.
PackageSIP
MountingThrough Hole, PCB
Power1W
Quick Jump:
Technical Specifications
Recom RP-0512D technical specifications.
General
Package/Case
SIP
Current - Output 1
42mA
Current - Output 2
42mA
Depth
7.05mm
Efficiency
82%
Features
SCP
Height
10.2mm
Isolation
Isolated
Isolation Voltage
5.2kV
Lead Free
Lead Free
Length
19.65mm
Max Input Voltage (DC)
5.5V
Min Input Voltage (DC)
4.5V
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
42mA
Max Output Power
1W
Max Output Voltage
12V
Max Power Dissipation
1W
Mount
Through Hole, PCB
Nominal Input Voltage
5V
Number of Outputs
2
Output Current
42mA
Output Power
1W
Output Voltage
12V
Package Quantity
25
Packaging
Rail/Tube
Power
Yes
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
RP
Voltage - Output 1
12V
Voltage - Output 2
-12V
Weight
2.4g
Width
7.05mm
Compliance
RoHS
Compliant
Datasheet
Recom RP-0512D Datasheet
Download the complete datasheet for Recom RP-0512D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

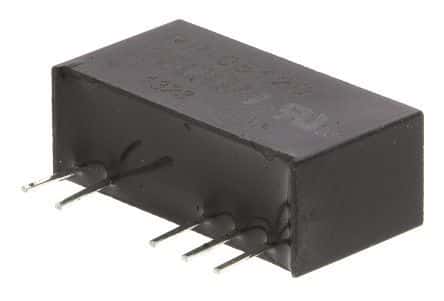

Product Images
