Board mount DC/DC converter, 8W max output power, delivering a 5V nominal output voltage with 1.5A max output current. Features an 18V to 75V DC input range, 83% efficiency, and isolated operation with 1.6kV isolation voltage. DIP package, through-hole mount, with OVP, OCP, and SCP protection. Operates from -40°C to 85°C, RoHS compliant.
PackageDIP
MountingThrough Hole
Power8W
Quick Jump:
Technical Specifications
Recom RP08-4805SAW technical specifications.
General
Package/Case
DIP
Depth
31.8mm
Efficiency
83%
Features
OVP, OCP, SCP
Height
10.3mm
Isolation
Isolated
Isolation Voltage
1.6kV
Lead Free
Lead Free
Length
31.8mm
Max Input Voltage (DC)
75V
Min Input Voltage (DC)
18V
Max Input Voltage
75V
Min Input Voltage
18V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Power
8W
Max Output Voltage
5V
Max Power Dissipation
7.5W
Mount
Through Hole
Nominal Input Voltage
48V
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
1.6A
Output Power
8W
Output Voltage
5V
Package Quantity
7
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
POWERLINE RP08-W
Voltage - Output 1
5V
Weight
18g
Width
20.3mm
Compliance
RoHS
Compliant
Datasheet
Recom RP08-4805SAW Datasheet
Download the complete datasheet for Recom RP08-4805SAW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

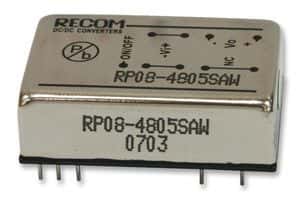

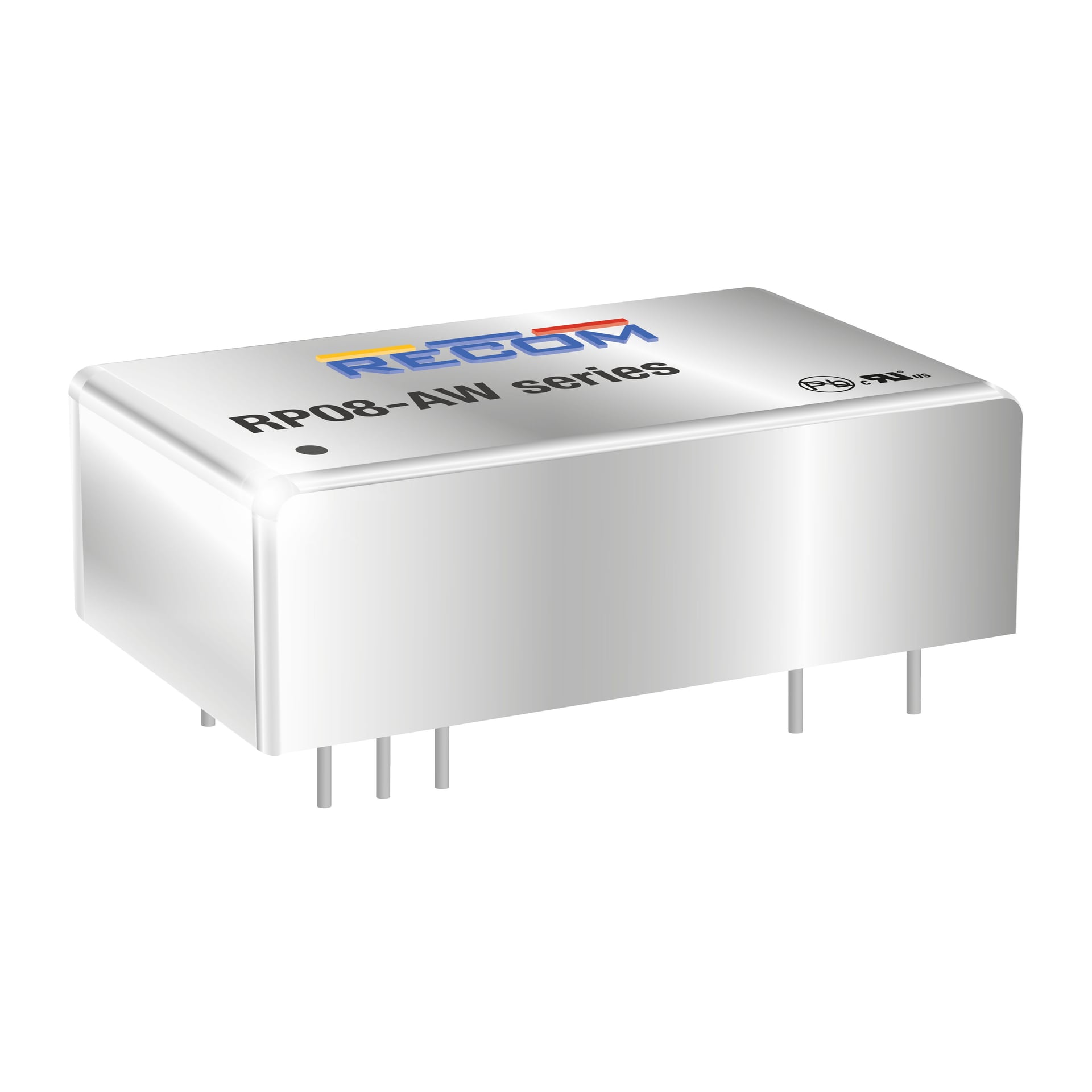

Product Images
