3W isolated DC-DC converter with dual +/-5V outputs, each rated for 300mA. Features 1kV isolation, 80% efficiency, and short-circuit protection (SCP). Operates from a 9V to 18V DC input, with a nominal input of 12V. SIP package for through-hole PCB mounting, measuring 21.8mm x 9.2mm x 11.1mm. Wide operating temperature range of -40°C to +71°C.
PackageSIP
MountingThrough Hole, PCB
Power3W
Quick Jump:
Technical Specifications

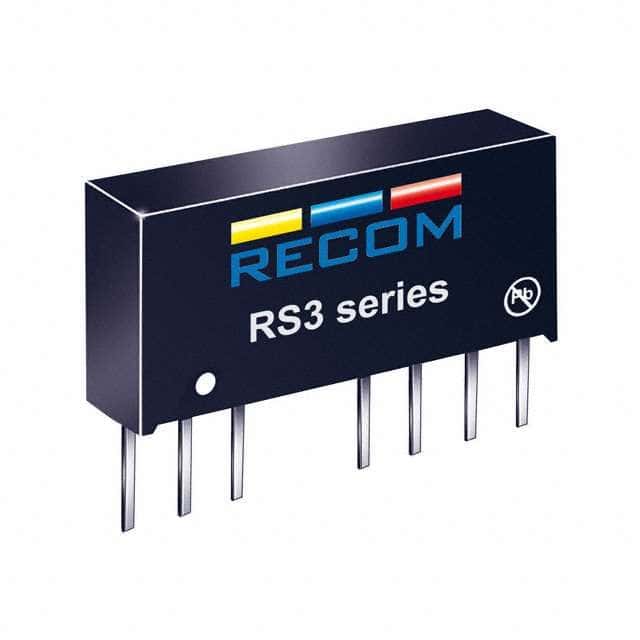

Recom RS3-1205D technical specifications.
General
Package/Case
SIP
Current - Output 1
300mA
Current - Output 2
300mA
Depth
11.1mm
Efficiency
80%
Features
SCP
Height
11.1mm
Isolation
Isolated
Isolation Voltage
1kV
Lead Free
Lead Free
Length
21.8mm
Max Input Voltage (DC)
18V
Min Input Voltage (DC)
9V
Max Input Voltage
18V
Min Input Voltage
9V
Max Operating Temperature
71°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Max Output Power
3W
Max Output Voltage
5V
Max Power Dissipation
3W
Mount
Through Hole, PCB
Nominal Input Voltage
12V
Number of Outputs
2
Output Current
300mA
Output Power
3W
Output Voltage
5V
Package Quantity
22
Packaging
Rail/Tube
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ECONOLINE RS3
Voltage - Output 1
5V
Voltage - Output 2
-5V
Weight
4.7g
Width
9.2mm
Compliance
RoHS
Compliant
Datasheet
Recom RS3-1205D Datasheet
Download the complete datasheet for Recom RS3-1205D to view detailed technical specifications.
