Technical Specifications
Rectron BAT54A technical specifications.
General
| Capacitance | 10pF |
| Package/Case | SOT-23 |
| Current Rating | 200mA |
| Forward Current | 200mA |
| Height | 1.15mm |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 600mA |
| Max Operating Temperature | 125°C |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 2uA |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Reverse Voltage | 40V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Rectron BAT54A Datasheet
Download the complete datasheet for Rectron BAT54A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

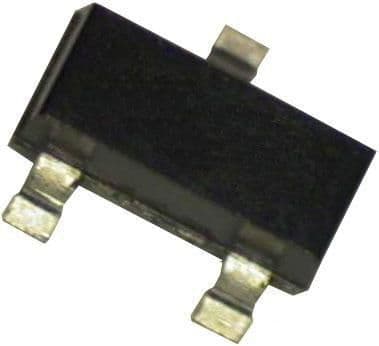

Product Images
