Releco
C3-R2012D
RELECO C3-R2012D General Purpose Relay, C3 Series, Power, Latching Single Coil, DPDT, 12 VDC, 10 A
Resistance137R
MountingPlug-In
Quick Jump:
Technical Specifications
Releco C3-R2012D technical specifications.
General
Coil Current
41mA
Coil Resistance
137R
Coil Voltage (DC)
12V
Contact Current Rating
10A
Contact Material
Silver
Height
58.5mm
Max Operating Temperature
60°C
Min Operating Temperature
-20°C
Mount
Plug-In
Number of Poles
2
Reach SVHC Compliant
No
Relay Type
General Purpose
Resistance
137R
Throw Configuration
DPDT
Width
35mm
Compliance
RoHS
Compliant
Datasheet
Releco C3-R2012D Datasheet
Download the complete datasheet for Releco C3-R2012D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

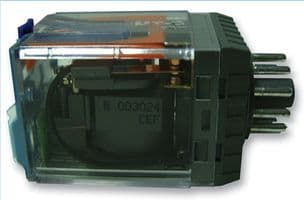

Product Images
