Renata
CR2477NRH-LF
RENATA CR2477 NRH-LF Battery, Button Cell, Single Cell, Lithium Manganese Dioxide, 950 mAh, 3 V, 2477, PCB Pins, 24.5 mm
Storage950mAh
Voltage Rating3V
Quick Jump:
Technical Specifications
Renata CR2477NRH-LF technical specifications.
General
Capacity
950mAh
Chemistry/Technology
Lithium
Height
14.05mm
Lead Free
Lead Free
Lead Length
4mm
Output Voltage
3V
Outside Diameter
24.5mm
Package Quantity
200
Packaging
Tray
Reach SVHC Compliant
Yes
Rechargeability
Non-Rechargeable
Termination
PCB
Voltage Rating
3V
Weight
8.5g
Width
24.7mm
Compliance
RoHS
Compliant
Datasheet
Renata CR2477NRH-LF Datasheet
Download the complete datasheet for Renata CR2477NRH-LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

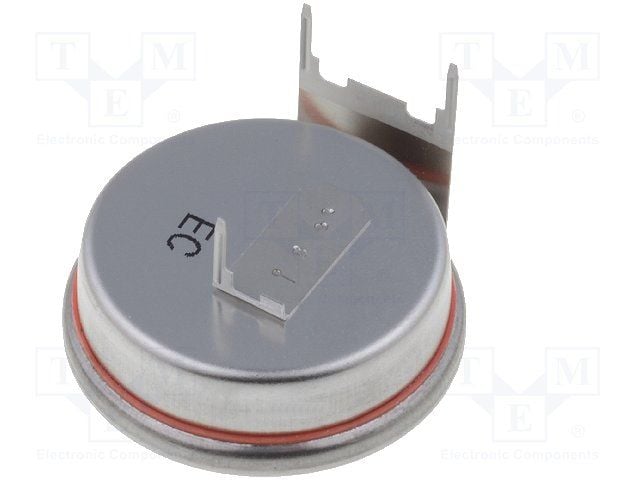

Product Images
