16-bit microcontroller featuring 256KB FLASH memory and 16KB RAM. Operates at up to 20MHz with a 16-bit data bus. Offers 67 I/O pins, 8 timers/counters, and integrated peripherals including POR, PWM, WDT, and LCD. Supports I2C and SCI interfaces, with an internal oscillator. Designed for surface mount installation in a PQFP package, operating from 4V to 5.5V and a temperature range of -20°C to 75°C.
Frequency20MHz
PackagePQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Renesas DF2268FA20V technical specifications.
General
| Access Time | 20us |
| Package/Case | PQFP |
| Data Bus Width | 16b |
| Frequency | 20MHz |
| Interface | I2C, SCI |
| Lead Free | Lead Free |
| Max Frequency | 20MHz |
| Max Operating Temperature | 75°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 256KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -20°C |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of I/Os | 67 |
| Number of Programmable I/O | 67 |
| Number of Timers/Counters | 8 |
| Operating Supply Voltage | 5V |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, LCD |
| Radiation Hardening | No |
| RAM Size | 16KB |
| Series | H8® H8S/2200 |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Renesas DF2268FA20V Datasheet
Download the complete datasheet for Renesas DF2268FA20V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

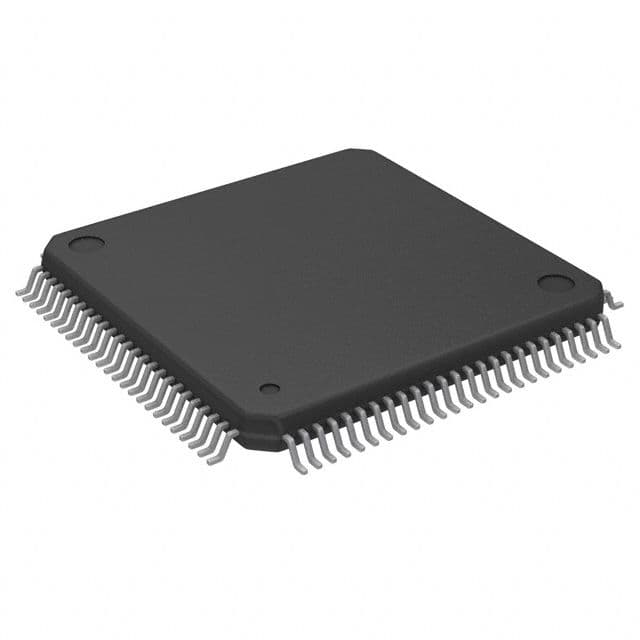

Product Images
