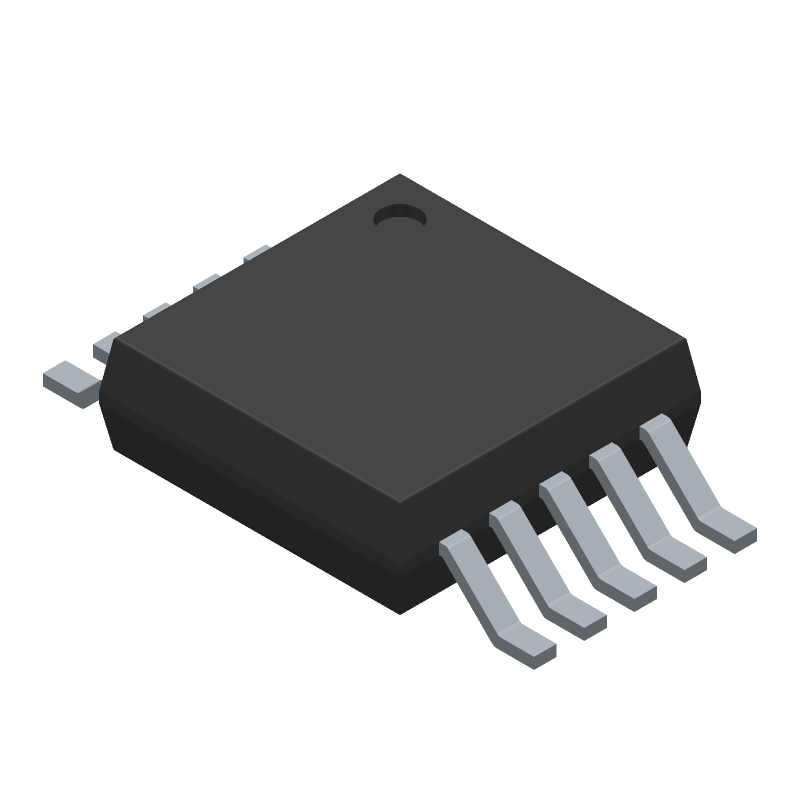

Precision digital power monitor, a single-channel integrated circuit designed for power management. Operates within a supply voltage range of 3V to 5.5V, with a nominal supply voltage of 3.3V. Features a 10-terminal configuration in a compact S-PDSO-G10 package, measuring 3mm x 3mm. Suitable for automotive applications, with an operating temperature range from -40°C to 125°C.
Quick Jump:
Technical Specifications
Renesas ISL28022FUZ-T7A technical specifications.
General
Max Operating Temperature
125
Number of Terminals
10
Min Operating Temperature
-40
Terminal Position
DUAL
JEDEC Package Code
S-PDSO-G10
Width
3
Length
3
Pin Count
10
Number of Functions
1
Temperature Grade
AUTOMOTIVE
Supply Voltage-Nom (Vsup)
3.3
Supply Voltage-Max (Vsup)
5.5
Supply Voltage-Min (Vsup)
3
Number of Channels
1
Compliance
RoHS
Yes
Eccn Code
EAR99
HTS Code
8542.39.00.01
REACH
Compliant
Military Spec
False
Datasheet
Renesas ISL28022FUZ-T7A Datasheet
Download the complete datasheet for Renesas ISL28022FUZ-T7A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
