Industrial temperature grade CMOS SRAM IC with 262144 bits density, organized as 32K x 8. Features a maximum access time of 70ns and common I/O type. This surface mount component operates from a 4.5V to 5.5V supply, with a nominal voltage of 5V. It offers a maximum operating temperature of 85°C and a standby current of 2µA. The device is housed in a 28-lead TSOP package with a 0.55mm terminal pitch.
Quick Jump:
Technical Specifications
Renesas R1LP5256ESA-7SI#B0 technical specifications.
General
Access Time-Max
70ns
Density
262144b
I/O Type
COMMON
JESD-30 Code
R-PDSO-G28
JESD-609 Code
e2
Max Operating Temperature
85°C
Max Supply Current
35mA
Memory Type
SRAM,
Memory Width
8
Min Operating Temperature
-40°C
Moisture Sensitivity Level
2
Number of Functions
1
Number of Words
32768
Number of Words Code
32K
Organization
32KX8
Output Characteristics
3-STATE
Package Body Material
Plastic
Package Code
SOP
Package Equivalence Code
TSSOP28,.53,22
Package Shape
Rectangular
Package Style
SMALL OUTLINEMeter
Parallel/Serial
PARALLEL
Power Supplies
5V
Qualification Status
Not Qualified
RoHS Compliant
Yes
Standby Current-Max
2uA
Standby Voltage-Min
4.5V
Supply Voltage-Max (Vsup)
5.5V
Supply Voltage-Min (Vsup)
4.5V
Supply Voltage-Nom (Vsup)
5V
Surface Mount
Yes
Technology
CMOS
Temperature Grade
INDUSTRIAL
Terminal Finish
Copper
Terminal Form
Gull Wing
Terminal Pitch
0.55mm
Terminal Position
DUAL
Compliance
RoHS
Compliant
Datasheet
Renesas R1LP5256ESA-7SI#B0 Datasheet
Download the complete datasheet for Renesas R1LP5256ESA-7SI#B0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

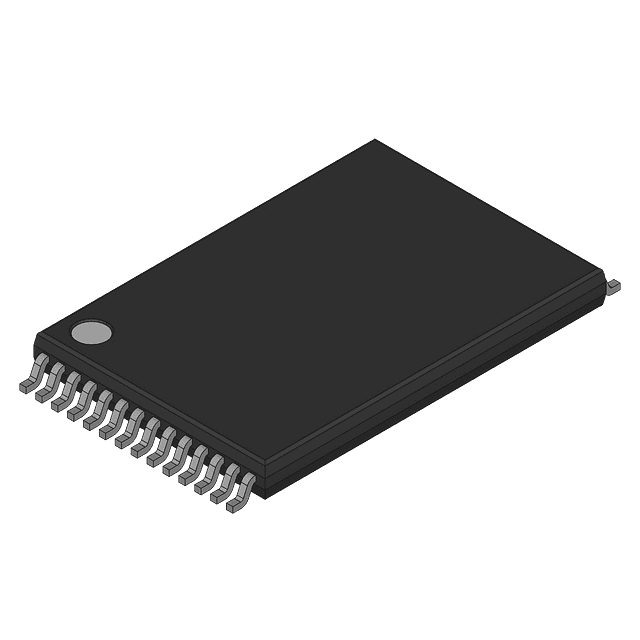

Product Images
