Industrial temperature grade CMOS SRAM with 1Mbit density, organized as 128K x 8. Features 55ns maximum access time and 3-state output characteristics. This parallel interface component operates from a 2.7V to 3.6V supply, with a nominal 3V, and offers a low standby current of 2uA. Packaged in a 32-lead small outline (SOP) with gull wing terminals on a 1.27mm pitch, this surface-mount device is RoHS compliant.
Quick Jump:
Technical Specifications
Renesas R1LV0108ESP-5SI#B0 technical specifications.
General
Access Time-Max
55ns
Density
1048576b
I/O Type
COMMON
JESD-30 Code
R-PDSO-G32
Max Operating Temperature
85°C
Max Supply Current
25mA
Memory Type
SRAM,
Memory Width
8
Min Operating Temperature
-40°C
Moisture Sensitivity Level
2
Number of Functions
1
Number of Words
131072
Number of Words Code
128K
Organization
128KX8
Output Characteristics
3-STATE
Package Body Material
Plastic
Package Code
SOP
Package Shape
Rectangular
Package Style
SMALL OUTLINEMeter
Parallel/Serial
PARALLEL
Power Supplies
3/3.3V
Qualification Status
Not Qualified
RoHS Compliant
Yes
Standby Current-Max
2uA
Standby Voltage-Min
2V
Supply Voltage-Max (Vsup)
3.6V
Supply Voltage-Min (Vsup)
2.7V
Supply Voltage-Nom (Vsup)
3V
Surface Mount
Yes
Technology
CMOS
Temperature Grade
INDUSTRIAL
Terminal Form
Gull Wing
Terminal Pitch
1.27mm
Terminal Position
DUAL
Compliance
RoHS
Compliant
Datasheet
Renesas R1LV0108ESP-5SI#B0 Datasheet
Download the complete datasheet for Renesas R1LV0108ESP-5SI#B0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

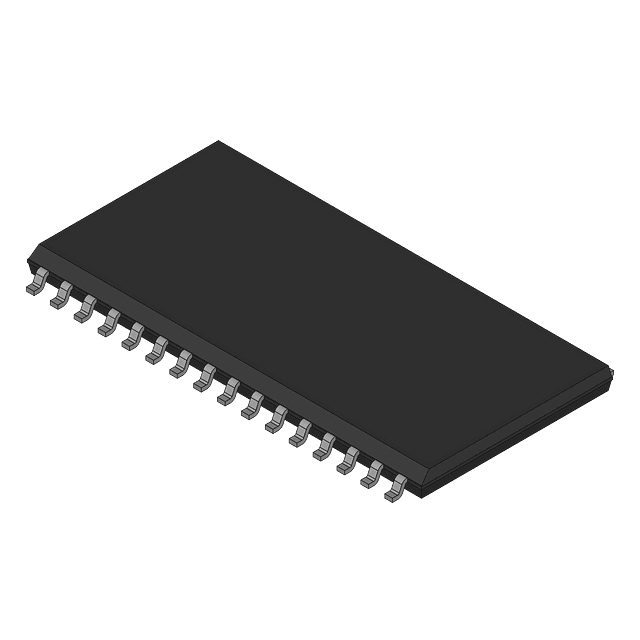

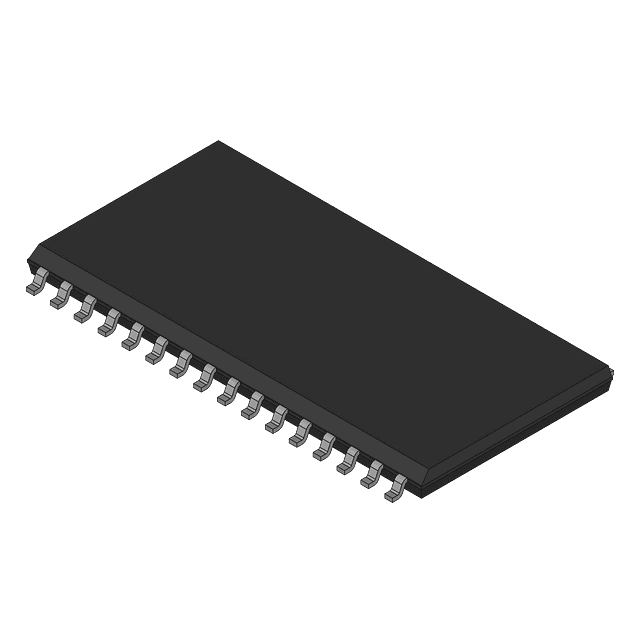

Product Images
