2Mbit CMOS SRAM, organized as 256K x 8, offers a maximum access time of 55ns. This parallel interface component operates from a 2.7V to 3.6V supply, with a nominal voltage of 3V. Featuring 3-state outputs and common I/O, it is housed in a 32-lead TSSOP package with a 0.5mm terminal pitch. Rated for industrial temperature ranges (-40°C to 85°C), this surface-mount device is RoHS compliant.
Quick Jump:
Technical Specifications
Renesas R1LV0208BSA-5SI#B0 technical specifications.
General
Access Time-Max
55ns
Density
2097152b
Height - Seated (Max)
1.2mm
I/O Type
COMMON
JESD-30 Code
R-PDSO-G32
Length
11.8mm
Max Operating Temperature
85°C
Max Supply Current
25mA
Memory Type
SRAM,
Memory Width
8
Min Operating Temperature
-40°C
Moisture Sensitivity Level
2
Number of Functions
1
Number of Words
262144
Number of Words Code
256K
Organization
256KX8
Output Characteristics
3-STATE
Package Body Material
Plastic
Package Code
TSSOP
Package Shape
Rectangular
Package Style
SMALL OUTLINE, THIN PROFILE, SHRINK PITCHMeter
Parallel/Serial
PARALLEL
Power Supplies
3/3.3V
Qualification Status
Not Qualified
RoHS Compliant
Yes
Standby Current-Max
10uA
Standby Voltage-Min
2V
Supply Voltage-Max (Vsup)
3.6V
Supply Voltage-Min (Vsup)
2.7V
Supply Voltage-Nom (Vsup)
3V
Surface Mount
Yes
Technology
CMOS
Temperature Grade
INDUSTRIAL
Terminal Form
Gull Wing
Terminal Pitch
0.5mm
Terminal Position
DUAL
Width
8mm
Compliance
RoHS
Compliant
Datasheet
Renesas R1LV0208BSA-5SI#B0 Datasheet
Download the complete datasheet for Renesas R1LV0208BSA-5SI#B0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

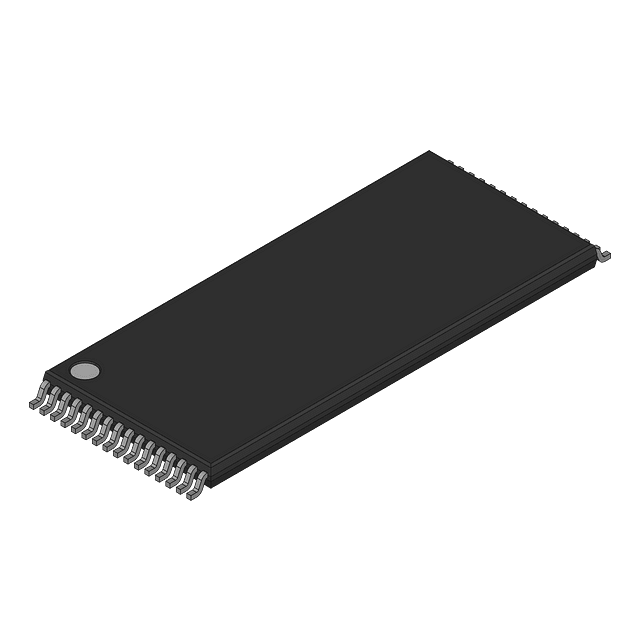

Product Images
