4Mbit CMOS SRAM, organized as 256K x 16, offers a maximum access time of 55ns. This industrial temperature grade component operates from a 2.7V to 3.6V supply voltage, with a nominal 3V. Featuring a parallel interface and surface mount capability, it is housed in a 44-lead TSOP package. The component is RoHS and Reach SVHC compliant, with an operating temperature range of -40°C to 85°C.
Quick Jump:
Technical Specifications
Renesas R1LV0414DSB-5SI#B0 technical specifications.
General
Access Time-Max
55ns
Density
4194304b
JESD-30 Code
R-PDSO-G44
Max Operating Temperature
85°C
Memory Type
SRAM,
Memory Width
16
Min Operating Temperature
-40°C
Moisture Sensitivity Level
2
Number of Functions
1
Number of Words
262144
Number of Words Code
256K
Organization
256KX16
Package Body Material
Plastic
Package Code
SOP
Package Shape
Rectangular
Package Style
SMALL OUTLINEMeter
Parallel/Serial
PARALLEL
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Supply Voltage-Max (Vsup)
3.6V
Supply Voltage-Min (Vsup)
2.7V
Supply Voltage-Nom (Vsup)
3V
Surface Mount
Yes
Technology
CMOS
Temperature Grade
INDUSTRIAL
Terminal Form
Gull Wing
Terminal Position
DUAL
Compliance
RoHS
Compliant
Datasheet
Renesas R1LV0414DSB-5SI#B0 Datasheet
Download the complete datasheet for Renesas R1LV0414DSB-5SI#B0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

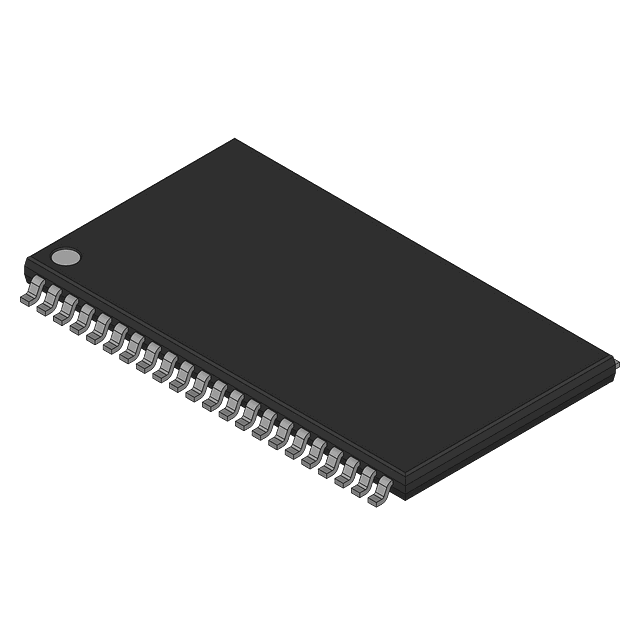

Product Images
