4Mbit CMOS SRAM with 70ns access time, organized as 256K x 16. This parallel memory IC features a 3V nominal supply voltage, operating between 2.7V and 3.6V, with a maximum operating temperature of 85°C. Housed in a 44-lead TSOP2 package with gull wing terminals, it offers 3-state outputs and a standby current of 10uA. Surface mountable, this component is RoHS and REACH SVHC compliant.
Quick Jump:
Technical Specifications
Renesas R1LV0416DSB-7LI#B0 technical specifications.
General
Access Time-Max
70ns
Density
4194304b
Height - Seated (Max)
1.2mm
I/O Type
COMMON
JESD-30 Code
R-PDSO-G44
Length
18.41mm
Max Operating Temperature
85°C
Memory Type
SRAM,
Memory Width
16
Min Operating Temperature
-40°C
Max Supply Current
25mA
Moisture Sensitivity Level
2
Number of Functions
1
Number of Words
262144
Number of Words Code
256K
Organization
256KX16
Output Characteristics
3-STATE
Package Body Material
Plastic
Package Code
TSOP2
Package Equivalence Code
TSOP44,.46,32
Package Shape
Rectangular
Package Style
SMALL OUTLINE, THIN PROFILEMeter
Parallel/Serial
PARALLEL
Power Supplies
3/3.3V
Qualification Status
Not Qualified
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Standby Current-Max
10uA
Standby Voltage-Min
2V
Supply Voltage-Max (Vsup)
3.6V
Supply Voltage-Min (Vsup)
2.7V
Supply Voltage-Nom (Vsup)
3V
Surface Mount
Yes
Technology
CMOS
Temperature Grade
INDUSTRIAL
Terminal Form
Gull Wing
Terminal Pitch
0.8mm
Terminal Position
DUAL
Width
10.16mm
Compliance
RoHS
Compliant
Datasheet
Renesas R1LV0416DSB-7LI#B0 Datasheet
Download the complete datasheet for Renesas R1LV0416DSB-7LI#B0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

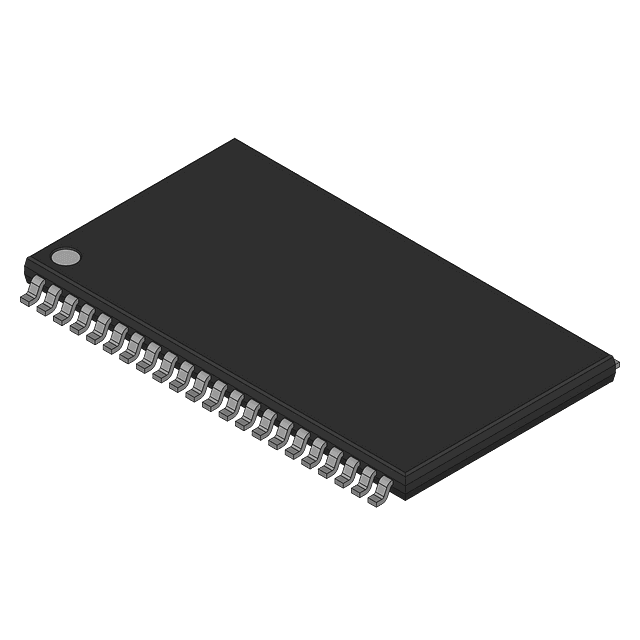

Product Images
