Industrial temperature grade CMOS SRAM IC with 262144 bits density, organized as 32K x 8. Features a maximum access time of 70ns and operates with 3V/3.3V power supplies, supporting a supply voltage range of 2.7V to 3.6V. This parallel interface memory component is housed in a 28-pin SOP (Small Outline) rectangular package with gull wing terminals, measuring 17.5mm in length and 8.4mm in width. It offers a maximum operating temperature of 85°C and a minimum of -40°C, with a maximum supply current of 25mA and a standby current of 10uA. RoHS compliant and surface mountable.
Quick Jump:
Technical Specifications
Renesas R1LV5256ESP-7SI#B0 technical specifications.
General
Access Time-Max
70ns
Density
262144b
Height - Seated (Max)
2.4mm
I/O Type
COMMON
JESD-30 Code
R-PDSO-G28
Length
17.5mm
Max Operating Temperature
85°C
Max Supply Current
25mA
Memory Type
SRAM,
Memory Width
8
Min Operating Temperature
-40°C
Moisture Sensitivity Level
2
Number of Functions
1
Number of Words
32768
Number of Words Code
32K
Organization
32KX8
Output Characteristics
3-STATE
Package Body Material
Plastic
Package Code
SOP
Package Shape
Rectangular
Package Style
SMALL OUTLINEMeter
Parallel/Serial
PARALLEL
Power Supplies
3/3.3V
Qualification Status
Not Qualified
RoHS Compliant
Yes
Standby Current-Max
10uA
Standby Voltage-Min
2V
Supply Voltage-Max (Vsup)
3.6V
Supply Voltage-Min (Vsup)
2.7V
Supply Voltage-Nom (Vsup)
3V
Surface Mount
Yes
Technology
CMOS
Temperature Grade
INDUSTRIAL
Terminal Form
Gull Wing
Terminal Pitch
1.27mm
Terminal Position
DUAL
Width
8.4mm
Compliance
RoHS
Compliant
Datasheet
Renesas R1LV5256ESP-7SI#B0 Datasheet
Download the complete datasheet for Renesas R1LV5256ESP-7SI#B0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

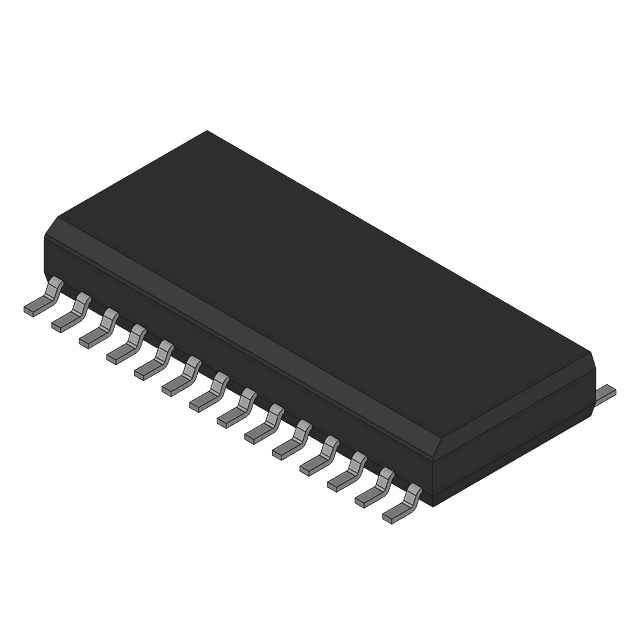

Product Images
