256Kbit CMOS SRAM, organized as 32K x 8, offers a maximum access time of 70ns. This parallel interface memory features 3-state outputs and operates with a supply voltage range of 2.7V to 3.6V, with a nominal 3V. Packaged in a 28-pin Small Outline (SOP) with gull wing terminals on a 1.27mm pitch, it supports surface mounting. The device operates within a commercial temperature range of 0°C to 70°C and is RoHS compliant.
Quick Jump:
Technical Specifications
Renesas R1LV5256ESP-7SR#B0 technical specifications.
General
Access Time-Max
70ns
Density
262144b
Height - Seated (Max)
2.4mm
I/O Type
COMMON
JESD-30 Code
R-PDSO-G28
Length
17.5mm
Max Operating Temperature
70°C
Max Supply Current
25mA
Memory Type
SRAM,
Memory Width
8
Min Operating Temperature
0°C
Moisture Sensitivity Level
2
Number of Functions
1
Number of Words
32768
Number of Words Code
32K
Organization
32KX8
Output Characteristics
3-STATE
Package Body Material
Plastic
Package Code
SOP
Package Shape
Rectangular
Package Style
SMALL OUTLINEMeter
Parallel/Serial
PARALLEL
Power Supplies
3/3.3V
Qualification Status
Not Qualified
RoHS Compliant
Yes
Standby Current-Max
8uA
Standby Voltage-Min
2V
Supply Voltage-Max (Vsup)
3.6V
Supply Voltage-Min (Vsup)
2.7V
Supply Voltage-Nom (Vsup)
3V
Surface Mount
Yes
Technology
CMOS
Temperature Grade
COMMERCIAL
Terminal Form
Gull Wing
Terminal Pitch
1.27mm
Terminal Position
DUAL
Width
8.4mm
Compliance
RoHS
Compliant
Datasheet
Renesas R1LV5256ESP-7SR#B0 Datasheet
Download the complete datasheet for Renesas R1LV5256ESP-7SR#B0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

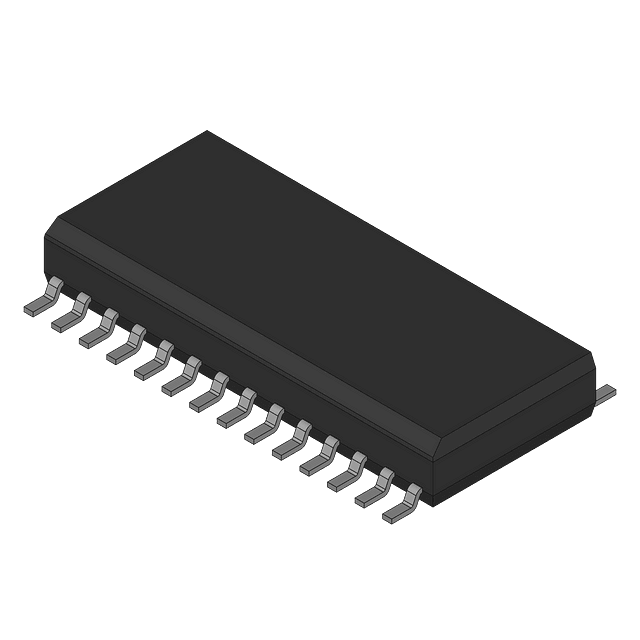

Product Images
