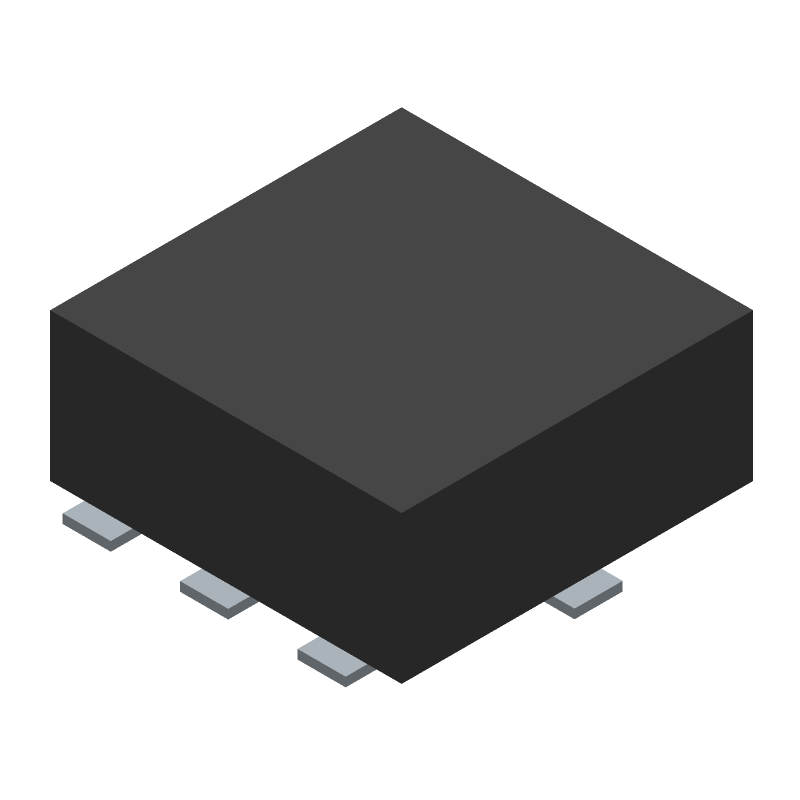

SMD SAW filter featuring a single function at 433.92MHz. Operating temperature range from -40°C to 95°C. Encased in a QCC8B package with 8 pins, measuring 3.8mm x 3.8mm x 1.5mm. ROHS compliant.
Quick Jump:
Technical Specifications
Rf360 B39431B3760Z810 technical specifications.
General
Max Operating Temperature
95
Min Operating Temperature
-40
Width
3.8
Length
3.8
Number of Functions
1
Height
1.5
Compliance
RoHS
Yes
Lead Free
Yes
REACH
Compliant
Military Spec
False
Datasheet
Rf360 B39431B3760Z810 Datasheet
Download the complete datasheet for Rf360 B39431B3760Z810 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
