Technical Specifications
Richtek RT9011-SSGQW technical specifications.
General
Current - Output 1
300mA
Current - Output 2
300mA
Dropout Voltage
240mV
Max Input Voltage
5.5V
Min Input Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Min Output Voltage
3.3V
Mount
Surface Mount
Number of Outputs
2
Number of Regulators
2
Output Configuration
Positive
Output Current
300mA
Output Type
Fixed
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
38dB
Quiescent Current
80uA
Reach SVHC Compliant
No
Voltage - Output 1
3.3V
Voltage - Output 2
3.3V
Compliance
RoHS
Compliant
Datasheet
Richtek RT9011-SSGQW Datasheet
Download the complete datasheet for Richtek RT9011-SSGQW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

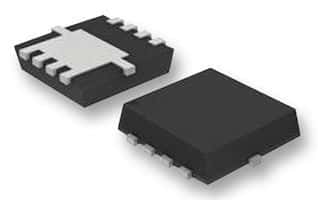

Product Images
