Through-hole fixed resistor with 1 Ohm resistance and 1% tolerance. Features a TO-247-2 package, 100W maximum power dissipation, and a 2-terminal configuration. Operating temperature range spans from -55°C to 155°C. Dimensions include a height of 0.787 inches, length of 0.63 inches, and width of 0.189 inches.
PackageTO-247-2
Resistance1R
Quick Jump:
Technical Specifications
Riedon PF2472-1RF1 technical specifications.
General
Package/Case
TO-247-2
Height
0.787inch
Length
0.63inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
100W
Number of Terminations
2
Package Quantity
25
Packaging
Tray
Resistance
1R
Series
PF2470
Tolerance
1%
Width
0.189inch
Compliance
RoHS
Compliant
Datasheet
Riedon PF2472-1RF1 Datasheet
Download the complete datasheet for Riedon PF2472-1RF1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

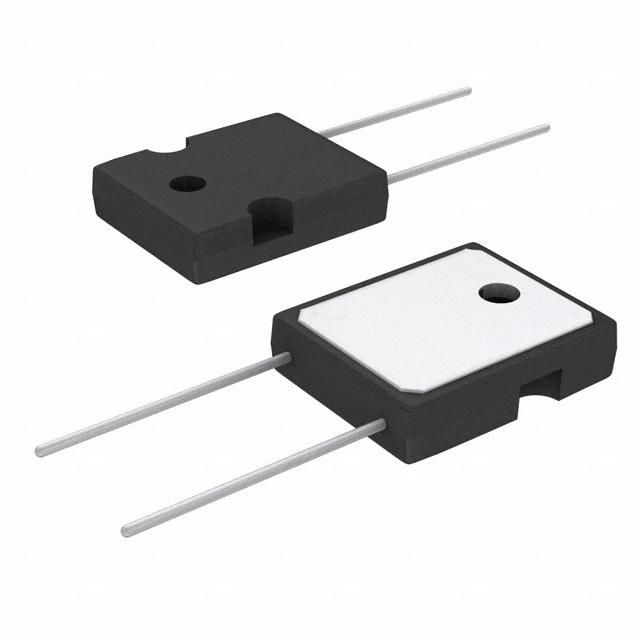

Product Images
