Technical Specifications
Rohm 2SC5060TV2M technical specifications.
General
| Collector Base Voltage (VCBO) | 100V |
| Collector Emitter Breakdown Voltage | 90V |
| Collector-emitter Voltage-Max | 1.5V |
| Current Rating | 1A |
| Emitter Base Voltage (VEBO) | 6V |
| hFE Min | 1000 |
| Lead Free | Lead Free |
| Max Collector Current | 1A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1W |
| Mount | Through Hole |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| RoHS Compliant | Yes |
| Transition Frequency | 80MHz |
| DC Rated Voltage | 90V |
Compliance
| RoHS | Compliant |
Datasheet
Rohm 2SC5060TV2M Datasheet
Download the complete datasheet for Rohm 2SC5060TV2M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

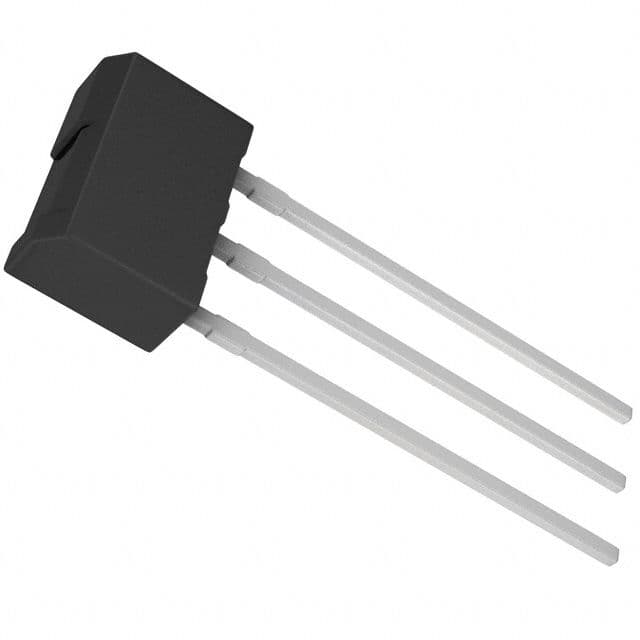

Product Images
