The BD5244FVE-TR is a surface mount Simple Reset/Power-On Reset IC from Rohm, featuring a 1V monitor and 1.5% threshold voltage. It operates over a temperature range of -40°C to 105°C and is compliant with RoHS. The IC has a maximum power dissipation of 210mW and a maximum output current of 2.2mA. It is available in a VSOF package and is suitable for use in a variety of applications.
PackageVSOF
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BD5244FVE-TR technical specifications.
General
| Package/Case | VSOF |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2.2mA |
| Max Power Dissipation | 210mW |
| Max Reset Threshold Voltage | 4.444V |
| Min Reset Threshold Voltage | 4.356V |
| Max Supply Voltage | 6.5V |
| Min Supply Voltage | 950mV |
| Mount | Surface Mount |
| Number of Voltages Monitored | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reset | Active Low |
| RoHS Compliant | Yes |
| Threshold Voltage | 4.4V |
| Tolerance | 1% |
| Type | Simple Reset/Power-On Reset |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BD5244FVE-TR Datasheet
Download the complete datasheet for Rohm BD5244FVE-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

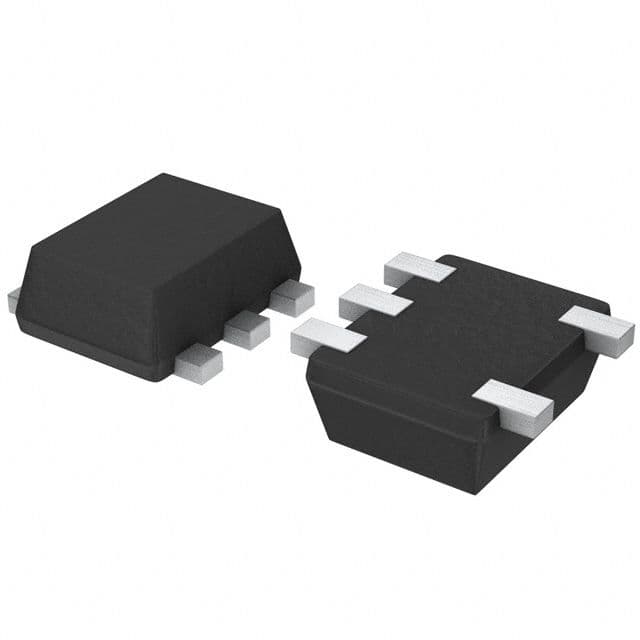

Product Images
