The BD5330FVE-TR is a simple reset/power-on reset IC with a single monitored input and voltage. It operates over a temperature range of -40°C to 105°C and has a maximum power dissipation of 210mW. The device is available in a VSOF package and is RoHS compliant. It has an operating supply current of 950nA and a threshold voltage of 3V. The BD5330FVE-TR is suitable for use in general power management applications.
PackageVSOF
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BD5330FVE-TR technical specifications.
General
| Accuracy | 1% |
| Package/Case | VSOF |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 210mW |
| Max Reset Threshold Voltage | 3.03V |
| Min Reset Threshold Voltage | 2.97V |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Monitored Inputs | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 950nA |
| Output | TOTEM-POLE |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reset | Active Low |
| RoHS Compliant | Yes |
| Series | BD53xx |
| Threshold Voltage | 3V |
| Type | Simple Reset/Power-On Reset |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BD5330FVE-TR Datasheet
Download the complete datasheet for Rohm BD5330FVE-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

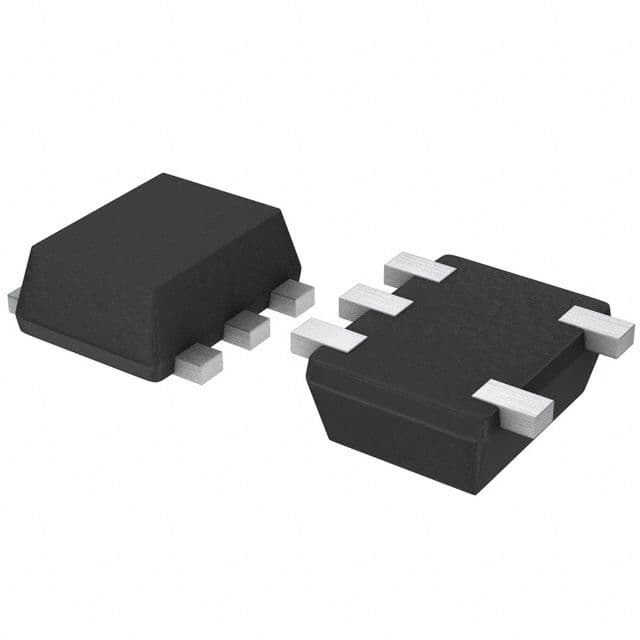

Product Images
