The BD8606FV-E2 is a DC/DC controller from Rohm with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It has a maximum input voltage of 8V and a minimum input voltage of 4V. The device is RoHS compliant and has a package type of ROHS COMPLIANT, SSOP-40. It is designed for surface mount applications and has a termination type of SMD/SMT.
Frequency600kHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm BD8606FV-E2 technical specifications.
General
| Package/Case | SSOP |
| Frequency | 600kHz |
| Max Input Voltage | 8V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 4.5V |
| Max Supply Voltage | 8V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Voltage | 4.5V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Rohm BD8606FV-E2 Datasheet
Download the complete datasheet for Rohm BD8606FV-E2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

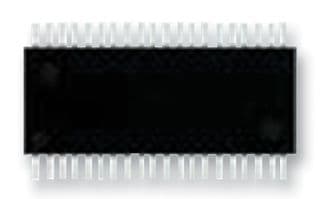

Product Images
